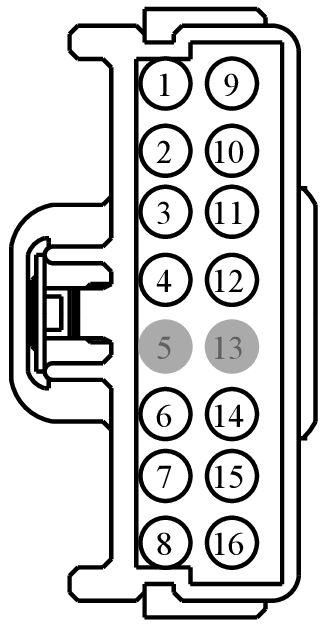

Connector End View (C3154B) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3154B | AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AAB | DU2Z-14474-DA | 1.5 |
| 97BG-14474-ABB | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VME06 (GN) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP + | 97BG-14474-AAB | ||||
| 2 | VME07 (WH) | 20 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + | 97BG-14474-ABB | ||||
| 3 | VME08 (GN-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER + | 97BG-14474-AAB | ||||
| 4 | VME09 (WH-GN) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + | 97BG-14474-AAB | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | VME10 (WH-VT) | 20 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + | 97BG-14474-ABB | ||||
| 7 | VME11 (VT-OG) | 20 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER + | 97BG-14474-ABB | ||||
| 8 | VME12 (BN-WH) | 20 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + | 97BG-14474-ABB | ||||
| 9 | RME06 (GY-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP - | 97BG-14474-AAB | ||||
| 10 | RME07 (WH-BN) | 20 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - | 97BG-14474-ABB | ||||
| 11 | RME08 (GY-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER - | 97BG-14474-AAB | ||||
| 12 | RME09 (BN-YE) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - | 97BG-14474-AAB | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | RME10 (WH-OG) | 20 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - | 97BG-14474-ABB | ||||
| 15 | RME11 (YE-OG) | 20 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER - | 97BG-14474-ABB | ||||
| 16 | RME12 (BN-BU) | 20 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) - | 97BG-14474-ABB | ||||

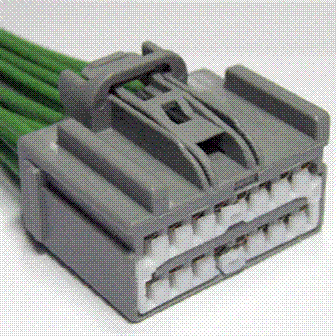

Available Pigtail Kits
Pigtail Kit Part Number WPT-1145
Service Part Number:
BU2Z-14S411-GA
Gauge:
18
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Mirror - Rearview (electrochromatic)
- Radio - Amplifier
