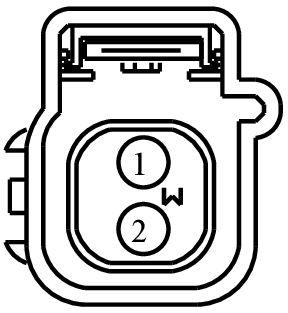

Connector End View (C3053) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C3053 | INLINE | 14D23114C687 | See Below | |||||
MALE
Harness
14D231
FEMALE
Harness
14C687
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AHA | Not Available |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR106 (VT-GY) | 18 | 97BG-14421-AHA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RR106 (YE-OG) | 18 | N/A | |||

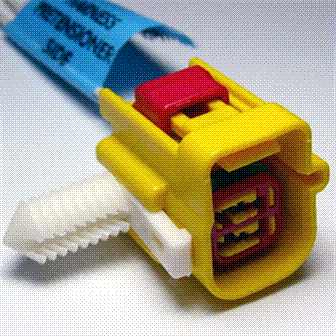

Available Pigtail Kits
Pigtail Kit Part Number WPT-1244
Service Part Number:
AU2Z-14S411-BMA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Passenger)
Pigtail Kit Part Number WPT-1172
Service Part Number:
8U2Z-14S411-ABB
Gauge:
20
Pin material:
Gold
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
