Connector End View (C3052) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C3052 | INLINE | BK | 14D23314D230 | Not Available | ||||

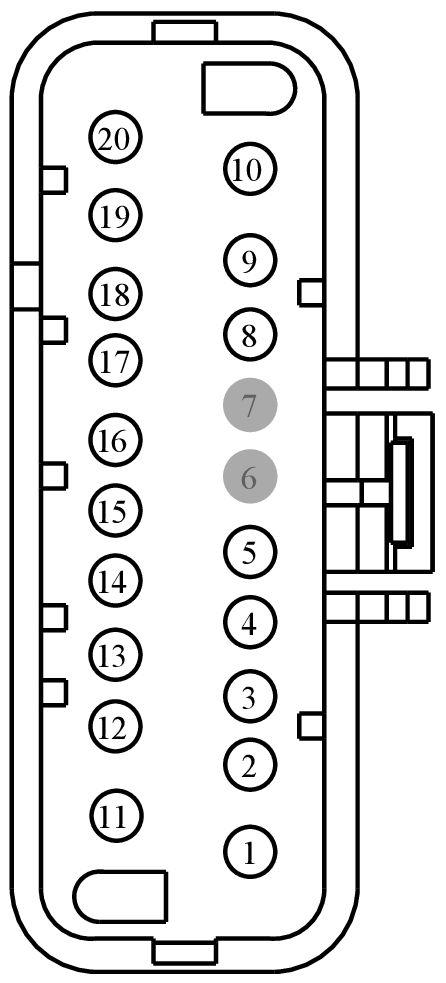

MALE
Harness
14D233

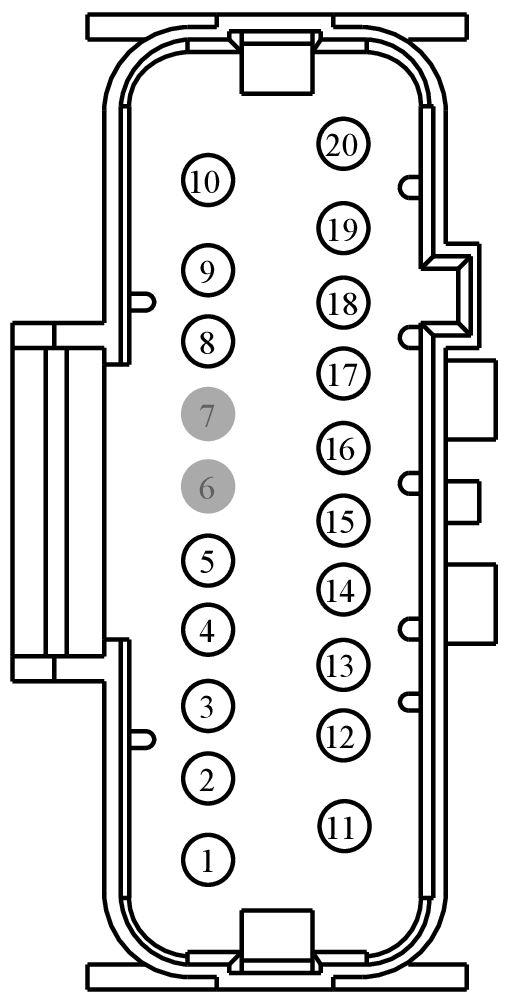

FEMALE
Harness
14D230
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ABB | Not Available | |
| BU5T-14E047-UA | Not Available | |
| 8U5T-14E044-JA | Not Available | |
| BU5T-14E042-EA | Not Available | |
| 97BG-14421-BCA | EU2Z-14421-EA | 2.8 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD904 (BK-BU) | 16 | 97BG-14421-ABB | |||
| 2 | CPS95 (GN-VT) | 20 | NA | |||
| 3 | CPS96 (WH-OG) | 20 | NA | |||
| 4 | VDB06 (GY-OG) | 20 | NA | |||
| 5 | VDB07 (VT-OG) | 20 | NA | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | CPS18 (BN-GN) | 18 | 97BG-14421-ABB | |||
| 9 | CPS19 (GY-VT) | 18 | 97BG-14421-ABB | |||
| 10 | CPS08 (VT-OG) | 14 | NA | |||
| 11 | CPS07 (GY-BN) | 14 | 97BG-14421-BCA | |||
| 12 | VHS21 (BU-WH) | 20 | NA | |||
| 13 | RHS08 (VT-WH) | 18 | NA | |||
| 14 | RHS02 (BU-OG) | 16 | with heated seats | NA | ||
| 14 | RHS06 (WH) | 14 | with heated/cooled seats | NA | ||
| 15 | CHS06 (BU-BN) | 14 | NA | |||
| 16 | VHS36 (YE-BU) | 20 | NA | |||
| 17 | RHS20 (GN-BU) | 20 | NA | |||
| 18 | CHS12 (YE-GN) | 16 | NA | |||
| 19 | CHS08 (BN-YE) | 18 | NA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD904 (BK-BU) | 16 | BU5T-14E047-UA | |||
| 2 | CPS95 (GN-VT) | 20 | BU5T-14E047-UA | |||
| 3 | CPS96 (WH-OG) | 20 | BU5T-14E047-UA | |||
| 4 | VDB06 (GY-OG) | 20 | BU5T-14E047-UA | |||
| 5 | VDB07 (VT-OG) | 20 | BU5T-14E047-UA | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | CPS18 (BN-GN) | 18 | NA | |||
| 9 | CPS19 (GY-VT) | 18 | NA | |||
| 10 | CPS30 (VT-BN) | 14 | NA | |||
| 11 | CPS29 (WH-BN) | 14 | 8U5T-14E044-JA | |||
| 12 | VHS21 (BU-WH) | 20 | NA | |||
| 13 | RHS08 (VT-WH) | 20 | BU5T-14E047-UA | |||
| 14 | GD904 (BK-BU) | 16 | with heated seats | BU5T-14E042-EA | ||
| 14 | RHS06 (WH) | 14 | with heated/cooled seats | NA | ||
| 15 | CHS06 (BU-BN) | 14 | NA | |||
| 16 | VHS36 (YE-BU) | 20 | BU5T-14E047-UA | |||
| 17 | RHS20 (GN-BU) | 20 | NA | |||
| 18 | CHS12 (YE-GN) | 16 | BU5T-14E042-EA | |||
| 19 | CHS08 (BN-YE) | 18 | NA | |||
