Connector End View (C3050) - INLINE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C3050	INLINE	14D23214D231			Not Available

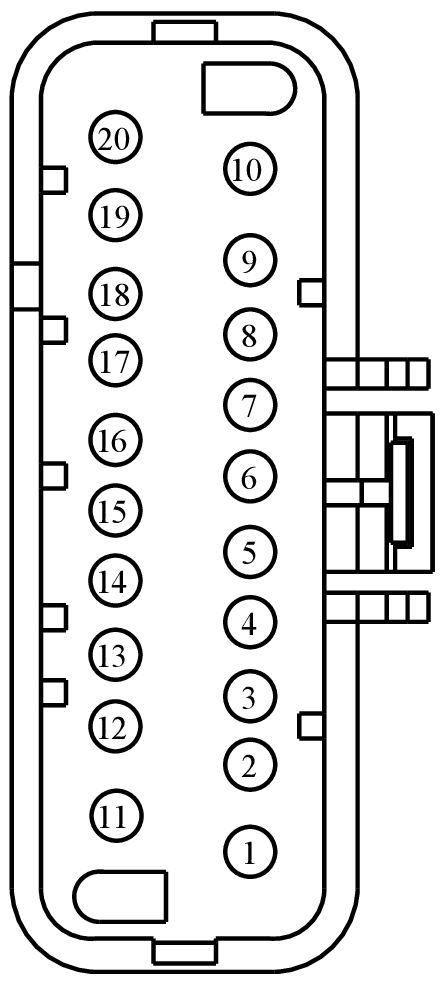

MALE

Harness

14D232

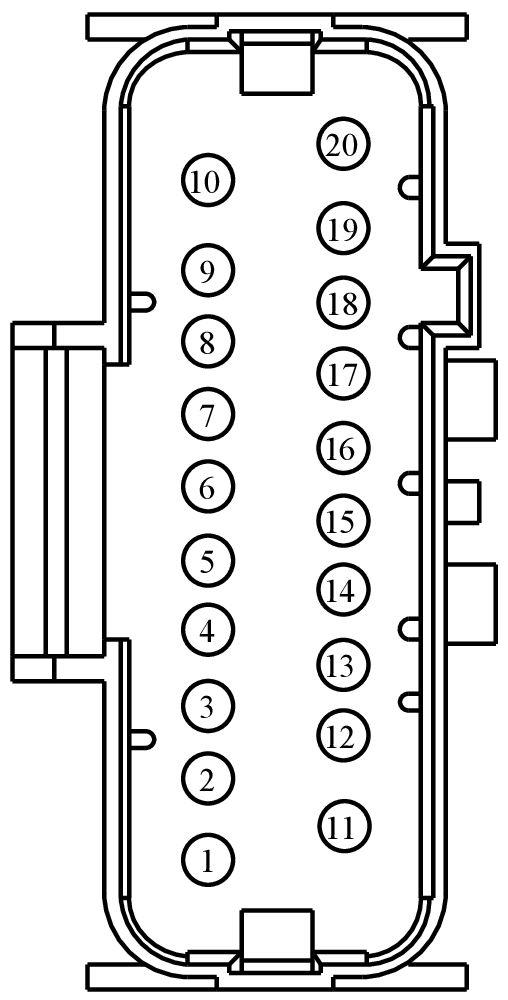

FEMALE

Harness

14D231

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-ABB	Not Available
97BG-14421-BCA	EU2Z-14421-EA	2.8

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD904 (BK-BU)	18	N/A
2	CPS95 (GN-VT)	18	N/A
3	CPS96 (WH-OG)	18	N/A
4	VDB06 (GY-OG)	18	N/A
5	VDB07 (VT-OG)	18	N/A
6	VPS12 (VT-OG)	18	N/A
7	RPS12 (GN-OG)	18	N/A
8	CPS18 (BN-GN)	20	N/A
9	CPS19 (GY-VT)	20	N/A
10	CPS07 (GY-BN)	16	N/A
11	CPS08 (VT-OG)	16	97BG-14421-BCA
12	CHS09 (GY)	18	N/A
13	RHS03 (GY-OG)	20	N/A
14	RHS01 (WH-VT)	16	97BG-14421-ABB
14	RHS02 (BU-OG)	18	97BG-14421-ABB
15	CHS01 (GY-VT)	16	N/A
16	CHS14 (GN)	18	N/A
17	CHS29 (WH-BU)	18	N/A
18	CHS12 (YE-GN)	18	97BG-14421-ABB
19	CHS03 (GN-BN)	20	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD904 (BK-BU)	18	N/A
2	CPS95 (GN-VT)	18	N/A
3	CPS96 (WH-OG)	18	N/A
4	VDB06 (GY-OG)	18	N/A
5	VDB07 (VT-OG)	18	N/A
6	VPS12 (GY-OG)	18	N/A
7	RPS12 (YE-VT)	18	N/A
8	CPS18 (BN-GN)	20	N/A
9	CPS19 (GY-VT)	20	N/A
10	CPS07 (GY-BN)	16	N/A
10	CPS29 (WH-BN)	16	N/A
11	CPS08 (VT-OG)	16	N/A
11	CPS30 (VT-BN)	16	N/A
12	CHS09 (GY)	18	N/A
13	RHS03 (GY-OG)	20	N/A
14	GD904 (BK-BU)	16	N/A
14	RHS01 (WH-VT)	16	N/A
15	CHS01 (GY-VT)	16	N/A
16	CHS14 (GN)	18	N/A
17	CHS29 (WH-BU)	18	N/A
18	CHS12 (YE-GN)	18	N/A
19	CHS03 (GN-BN)	20	N/A
