Connector End View (C3007) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C3007 | INLINE | 14B59914405 | See Below | |||||

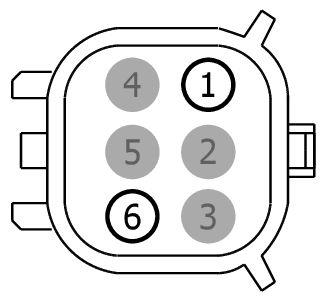

MALE
Harness
14B599

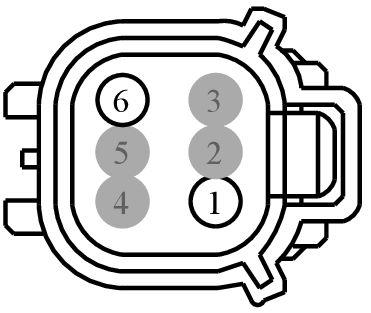

FEMALE
Harness
14405
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7C3T-14474-EA|7C3T-14474-DA | Not Available | |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD477 (BU-GY) | 18 | 2L1T-14421-CA | |||
| 2 | * | * | N/A | |||
| 3 | * | * | N/A | |||
| 4 | * | * | N/A | |||
| 5 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD476 (BK-WH) | 18 | 7C3T-14474-EA|7C3T-14474-DA | |||
| 1 | GD477 (BU-GY) | 18 | 7C3T-14474-EA|7C3T-14474-DA | |||
| 2 | * | * | N/A | |||
| 3 | * | * | N/A | |||
| 4 | * | * | N/A | |||
| 5 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1426
Service Part Number:
FU2Z-14S411-TA
Gauge:
16
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
- Lamp - Park/Turn/Stop
- Sensor - Coolant Temperature
- Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-971
Service Part Number:
3U2Z-14S411-FEAB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Motor - Engine Cooling Fan
- Motor - Running Board
