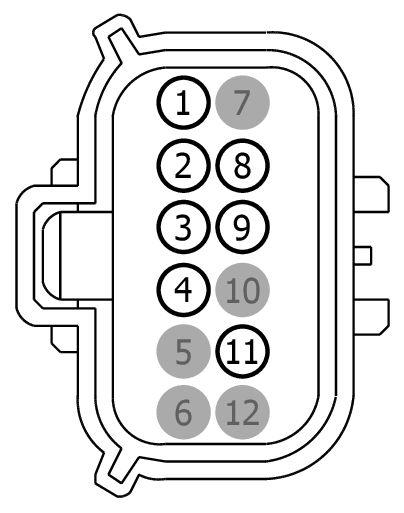

Connector End View (C2518) - BATTERY ENERGY CONTROL MODULE B (BECMB)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2518	BATTERY ENERGY CONTROL MODULE B (BECMB)	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-EA	DU2Z-14474-DA	1.5
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD238 (BK-WH)	16	GROUND - COWL SIDE/PILLAR A RIGHT	7C3T-14474-EA
2	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	BU5T-14474-UA
3	CR194 (VT-WH)	22	#N/A	BU5T-14474-UA
4	CBP35 (YE-GY)	22	FUSE - 35 OR CIRCUIT BREAKER	BU5T-14474-UA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	BU5T-14474-UA
9	CR195 (YE-BU)	22	#N/A	BU5T-14474-UA
10	*	*	Not Used	N/A
11	SBP14 (BN-RD)	16	FUSE - 14 OR CIRCUIT BREAKER	7C3T-14474-EA
12	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1544

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AMB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - Front Turn
Lamp - Headlamp - High/Low Beam
Mirror - Sideview / Heated
Module - Battery Energy Control
Module - Extended Power
Module - Gear Shift
Module - Glow Plug
Module - Transmission Ranger Control
Trailer Tow - Vehicle Side

Pigtail Kit Part Number WPT-1125

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AMA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Mirror - Sideview
