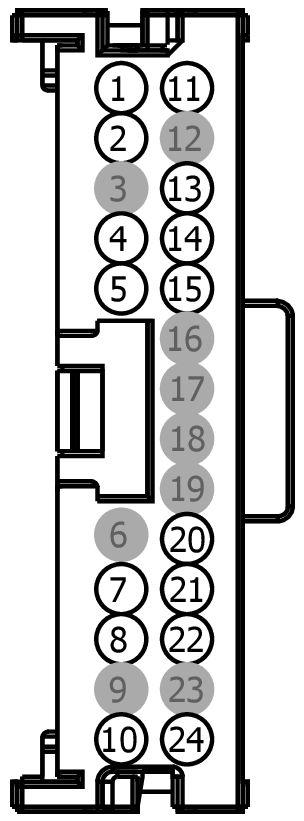

Connector End View (C2512) - IMAGE PROCESSING MODULE B (IPMB)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2512 |
IMAGE PROCESSING MODULE B (IPMB) |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| GU5T-14474-KA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VMP43 (GN-BU) |
22 |
CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT + |
GU5T-14474-KA |
| 2 |
DMP43 (*) |
22 |
SHIELD |
GU5T-14474-KA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
VMP44 (VT-GY) |
22 |
CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT - |
GU5T-14474-KA |
| 5 |
VDB25 (GN-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
GU5T-14474-KA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
VMP43 (GN-BU) |
22 |
CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT + |
GU5T-14474-KA |
| 8 |
CMP40 (VT) |
22 |
#N/A |
GU5T-14474-KA |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
CBP36 (BU-BN) |
22 |
FUSE - 36 OR CIRCUIT BREAKER |
GU5T-14474-KA |
| 11 |
VMP44 (VT-GY) |
22 |
CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT - |
GU5T-14474-KA |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
DMP38 (*) |
22 |
CAMERA - OPTIONAL VIDEO D |
GU5T-14474-KA |
| 14 |
VMP39 (BU-OG) |
22 |
CAMERA - OPTIONAL VIDEO- |
GU5T-14474-KA |
| 15 |
VDB26 (GY-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
GU5T-14474-KA |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
DMP43 (*) |
22 |
SHIELD |
GU5T-14474-KA |
| 21 |
VMP44 (VT-GY) |
22 |
CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT - |
GU5T-14474-KA |
| 22 |
VMP24 (WH) |
22 |
CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS |
GU5T-14474-KA |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
GD216 (BK-VT) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
GU5T-14474-KA |
