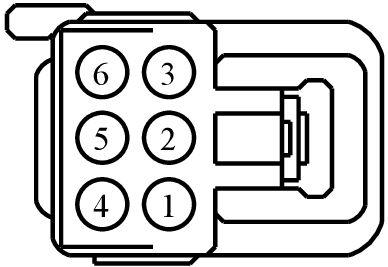

Connector End View (C2506B) - SPOT LAMP MODULE (SLM)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2506B | SPOT LAMP MODULE (SLM) | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-ACB | Not Available | |
| 97BG-14474-AAB | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBB90 (YE-RD) | 22 | FUSE - 90 OR CIRCUIT BREAKER | 97BG-14474-ACB | ||||
| 1 | SBB90 (YE-RD) | 18 | FUSE - 90 OR CIRCUIT BREAKER | 97BG-14474-ACB | ||||
| 2 | CLF76 (GY-OG) | 22 | #N/A | 97BG-14474-AAB | ||||
| 3 | SBB90 (YE-RD) | 22 | FUSE - 90 OR CIRCUIT BREAKER | 97BG-14474-AAB | ||||
| 4 | CLF72 (BN) | 22 | #N/A | 97BG-14474-AAB | ||||
| 5 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | 97BG-14474-AAB | ||||
| 6 | CLF75 (VT-BN) | 22 | #N/A | 97BG-14474-AAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1032
Service Part Number:
9U2Z-14S411-XA
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Module - Climate Control Seat
- Module - Heated Seat
