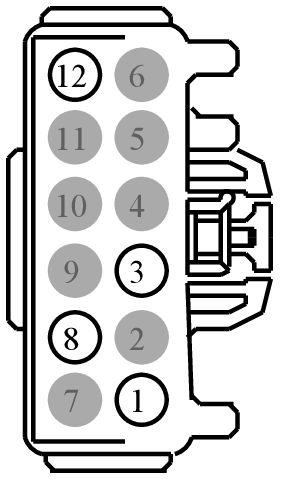

Connector End View (C2498C) - TRAILER TOW MODULE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2498C | TRAILER TOW MODULE | LT GY | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3M5T-14474-HCA | DU2Z-14474-EA | 2.8 |
| 3M5T-14474-HBA | DU2Z-14474-EA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CAT06 (YE) | 12 | CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT | 3M5T-14474-HCA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CAT14 (OG) | 12 | RELAY - TRAILER TOW BATTERY CHARGING | 3M5T-14474-HCA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | CAT09 (GN) | 12 | CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT | 3M5T-14474-HCA | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | CAT11 (BN) | 16 | CTRL MOD. - TRAILER TOW # PARK LAMPS | 3M5T-14474-HBA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-396
Service Part Number:
3U2Z-14S411-BKA
Gauge:
12
Pin material:
Tin
Cavities:
12
Vehicle Uses:
- Module - Liftgate
- Switch - Headlamp
- Switch - Seat (driver)
- Switch - Seat (passenger)
