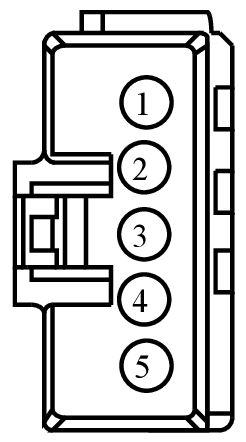

Connector End View (C2414) - CLOCKSPRING/STEERING ANGLE CONTROL MODULE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2414	CLOCKSPRING/STEERING ANGLE CONTROL MODULE	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-BBA	Not Available
96AG-14474-RSA	FU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD284 (BK-GY)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 4TH POINT	DU5T-14474-BBA
2	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	96AG-14474-RSA
3	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	96AG-14474-RSA
4	CBP20 (YE-VT)	22	FUSE - 20 OR CIRCUIT BREAKER	96AG-14474-RSA
5	SBB45 (GY-RD)	18	FUSE - 45 OR CIRCUIT BREAKER	DU5T-14474-BBA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1450

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-PB

Gauge:

14 20

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Clockspring
Module - Power Steering
Motor - Seat Height (Front)
Motor - Seat Height (Rear)
Motor - Seat Recline
