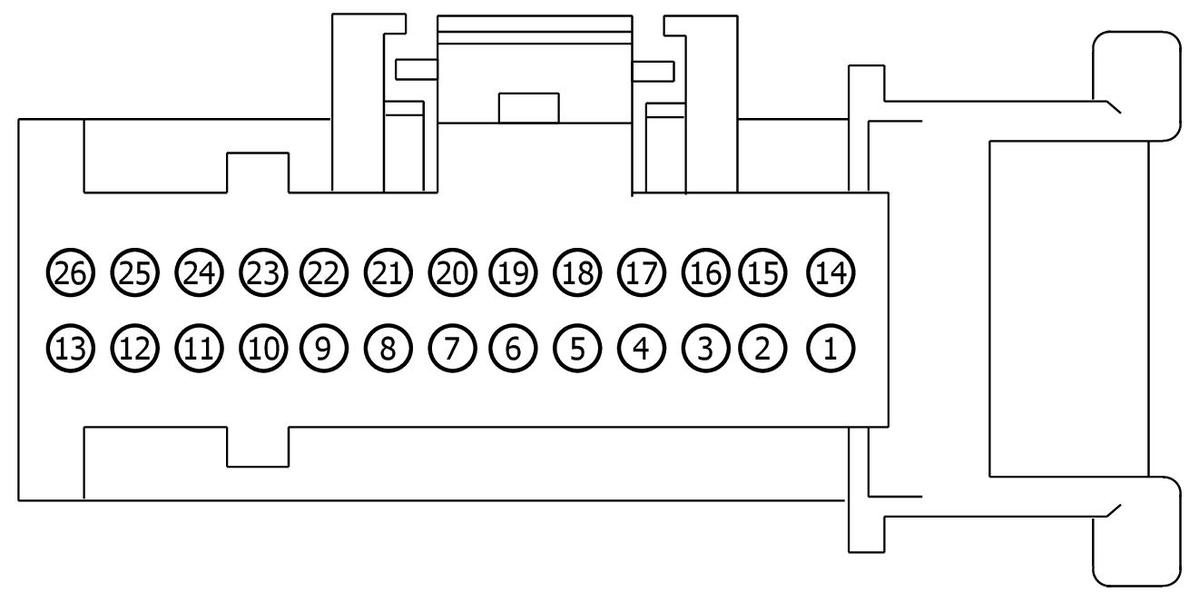

Connector End View (C2402A) - FRONT CONTROLS INTERFACE MODULE (FCIM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2402A	FRONT CONTROLS INTERFACE MODULE (FCIM)	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD216 (BK-VT)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-DB
1	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	9U5T-14474-DB
2	RH111 (GY-BU)	22	CTRL MOD. - CLIMATE # GENERIC VREF RETURN	9U5T-14474-DB
2	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	9U5T-14474-DB
3	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # GENERIC VREF	9U5T-14474-DB
3	CH123 (VT-GN)	22	CTRL MOD. - BLOWER MOTOR RELAY	9U5T-14474-DB
4	CRD02 (BN-BU)	22	CTRL MOD. - RELAY HEATER REAR WINDOW	9U5T-14474-DB
5	VHA31 (GN-BN)	22	SENSOR - REAR TEMP	9U5T-14474-DB
6	CH202 (BU-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1/FLOOR (IF PLUS)	9U5T-14474-DB
7	CRD02 (BN-BU)	22	CTRL MOD. - RELAY HEATER REAR WINDOW	9U5T-14474-DB
7	CH203 (GN-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS)	9U5T-14474-DB
8	CH239 (BU-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2/OPEN (IF PLUS)	9U5T-14474-DB
9	CH238 (YE-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1/CLOSE (IF PLUS)	9U5T-14474-DB
10	VH440 (BU-BN)	22	SENSOR - DOOR POSITION TEMP. LEFT	9U5T-14474-DB
10	CH208 (GN-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2/OPEN (IF PLUS)	9U5T-14474-DB
11	CH123 (VT-GN)	22	CTRL MOD. - BLOWER MOTOR RELAY	9U5T-14474-DB
11	CH207 (BU-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1/CLOSE (IF PLUS)	9U5T-14474-DB
12	VH101 (WH-VT)	22	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL	9U5T-14474-DB
13	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # GENERIC VREF	9U5T-14474-DB
14	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER	9U5T-14474-DB
15	CH312 (YE-OG)	22	CTRL MOD. - RELAY PTC BANK 3	9U5T-14474-DB
16	VH438 (GN-VT)	22	SENSOR - DOOR POSITION RECIRC.	9U5T-14474-DB
16	CH311 (VT-GN)	22	CTRL MOD. - RELAY PTC BANK 2	9U5T-14474-DB
17	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	9U5T-14474-DB
17	CH310 (GN)	22	CTRL MOD. - RELAY PTC BANK 1	9U5T-14474-DB
18	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	9U5T-14474-DB
18	VH414 (GN-BU)	22	SENSOR - FRONT IN-CAR TEMPERATURE 1 OR SINGLE	9U5T-14474-DB
19	VH406 (VT-BN)	22	SENSOR - A/C EVAPORATOR TEMPERATURE (ACET)	9U5T-14474-DB
20	CH202 (BU-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1/FLOOR (IF PLUS)	9U5T-14474-DB
20	VH440 (BU-BN)	22	SENSOR - DOOR POSITION TEMP. LEFT	9U5T-14474-DB
21	CH203 (GN-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS)	9U5T-14474-DB
21	VH413 (WH-BU)	22	SENSOR - HUMIDITY	9U5T-14474-DB
22	VH437 (VT-BN)	22	SENSOR - DOOR POSITION PANEL/FLOOR	9U5T-14474-DB
22	VH438 (GN-VT)	22	SENSOR - DOOR POSITION RECIRC.	9U5T-14474-DB
23	VH101 (WH-VT)	22	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL	9U5T-14474-DB
23	VH406 (VT-BN)	22	SENSOR - A/C EVAPORATOR TEMPERATURE (ACET)	9U5T-14474-DB
24	CH208 (GN-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2/OPEN (IF PLUS)	9U5T-14474-DB
24	VH437 (VT-BN)	22	SENSOR - DOOR POSITION PANEL/FLOOR	9U5T-14474-DB
25	CH207 (BU-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1/CLOSE (IF PLUS)	9U5T-14474-DB
25	RH111 (GY-BU)	22	CTRL MOD. - CLIMATE # GENERIC VREF RETURN	9U5T-14474-DB
26	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER	9U5T-14474-DB
26	GD216 (BK-VT)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-DB
