Connector End View (C2391A) - STEERING EFFORT CONTROL MODULE (SECM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2391A	STEERING EFFORT CONTROL MODULE (SECM)	LT GY	PIA	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	FUSE - F45 (B+)	N/A
2	* (*)	*	GROUND - INSTRUMENT PANEL STRUCTURE	N/A

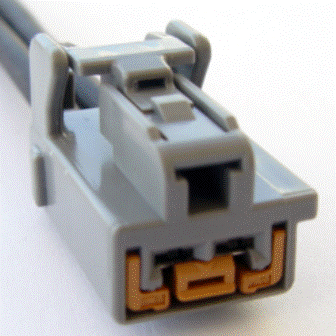

Available Pigtail Kits

Pigtail Kit Part Number WPT-404

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CAA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Motor - Power Window - LH - Front
Motor - Power Window - LH - Rear
Motor - Power Window - RH - Front
Motor - Power Window - RH - Rear
Switch - Brake Pedal Position
Switch - Stop Lamp
