Connector End View (C2383A) - SYNC MODULE [APIM]

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C2383A SYNC MODULE [APIM] 14401 part# N/A Not Available

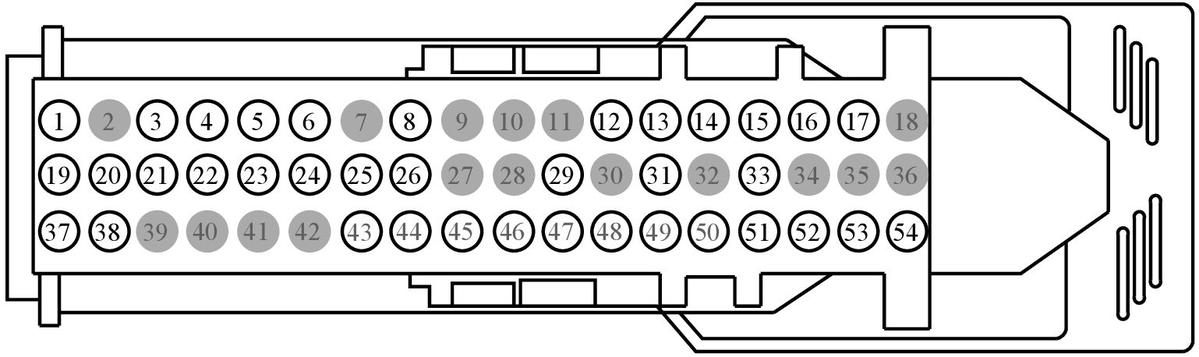

GFDWR56673Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DB|9U5T-14474-EB Not Available
9U5T-14474-DB DU2Z-14474-AA 0.64
9U5T-14474-EB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SBP32 (VT-RD) 20 FUSE - 32 OR CIRCUIT BREAKER 9U5T-14474-EB
2 * * Not Used N/A
3 VME80 (VT-GN) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) 9U5T-14474-DB
4 RME80 (BU-GY) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) 9U5T-14474-DB
5 VMM23 (BN-VT) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + 9U5T-14474-DB
6 RMM23 (WH-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - 9U5T-14474-DB
7 * * Not Used N/A
8 LME89 (YE-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY POWER 9U5T-14474-DB
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 VMM23 (BN-VT) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + 9U5T-14474-DB
13 RMM23 (WH-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - 9U5T-14474-DB
14 VMP43 (GN-BU) 22 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT + 9U5T-14474-DB
15 VMP44 (VT-GY) 22 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT - 9U5T-14474-DB
16 VDB29 (GN-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH 9U5T-14474-DB
17 VDB30 (WH-GN) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW 9U5T-14474-DB
18 * * Not Used N/A
19 VDB29 (GN-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH 9U5T-14474-DB
20 VDB30 (WH-GN) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW 9U5T-14474-DB
21 DME80 (*) 18 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D 9U5T-14474-DB
22 DME53 (*) 18 SHIELD 9U5T-14474-DB
22 DME52 (*) 18 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] D 9U5T-14474-DB
23 VME52 (BU) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + 9U5T-14474-DB
23 VME53 (VT-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + 9U5T-14474-DB
24 RME52 (GY-OG) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - 9U5T-14474-DB
24 RME53 (BN-WH) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - 9U5T-14474-DB
25 VME53 (VT-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + 9U5T-14474-DB
25 VME52 (BU) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + 9U5T-14474-DB
26 RME53 (BN-WH) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - 9U5T-14474-DB
26 RME52 (GY-OG) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - 9U5T-14474-DB
27 * * Not Used N/A
28 * * Not Used N/A
29 DME23 (*) 18 SHIELD 9U5T-14474-DB
30 * * Not Used N/A
31 DME23 (*) 18 SHIELD 9U5T-14474-DB
32 * * Not Used N/A
33 DMP43 (*) 18 SHIELD 9U5T-14474-DB
34 * * Not Used N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 GD215 (BK-GY) 18 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT 9U5T-14474-DB|9U5T-14474-EB
37 GD215 (BK-GY) 20 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT 9U5T-14474-DB|9U5T-14474-EB
38 RME89 (WH-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY GROUND 9U5T-14474-DB|9U5T-14474-EB
38 GD215 (BK-GY) 20 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT 9U5T-14474-DB|9U5T-14474-EB
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 VME90 (GY-BU) 22 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) 9U5T-14474-DB
52 VME91 (WH-BN) 22 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) 9U5T-14474-DB
53 VDB04 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH 9U5T-14474-DB
54 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW 9U5T-14474-DB
