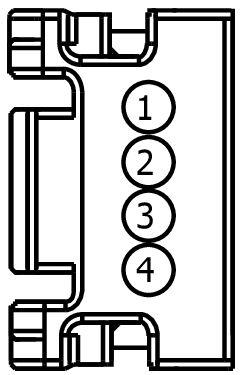

Connector End View (C2366) - STEERING WHEEL SWITCH LH
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2366 |
STEERING WHEEL SWITCH LH |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* (*) |
* |
GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
N/A |
| 2 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1 |
N/A |
| 3 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT) |
N/A |
| 4 |
* (*) |
* |
CTRL MOD. - IP/SWITCH ILLUMINATION |
N/A |
