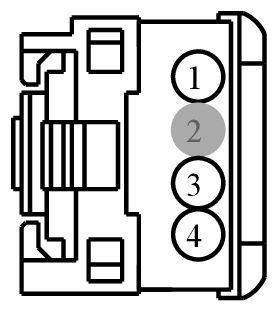

Connector End View (C2362) - AUDIO INPUT JACK
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2362 |
AUDIO INPUT JACK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VME46 (BU-GN) |
22 |
JACK - AUDIO # EXT. AUX IN RIGHT (+) |
9U5T-14474-DB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
RME45 (YE-GN) |
22 |
JACK - AUDIO # EXT. AUX IN LEFT OR COMMON (-) |
9U5T-14474-DB |
| 4 |
VME45 (BU) |
22 |
JACK - AUDIO # EXT. AUX IN LEFT (+) |
9U5T-14474-DB |
