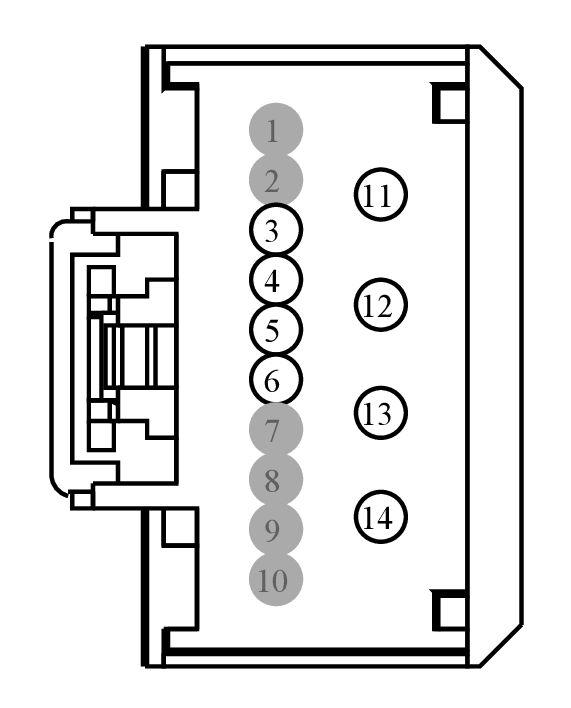

Connector End View (C2293B) - DC/AC INVERTER MODULE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2293B	DC/AC INVERTER MODULE	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BBA\|97BG-14474-BCA	Not Available
9U5T-14474-DB	DU2Z-14474-AA	0.64
97BG-14474-BAA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	LYA03 (YE-VT)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +	9U5T-14474-DB
4	RYA03 (BU-BN)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -	9U5T-14474-DB
5	RYA18 (VT-GN)	22	CTRL MOD. - DC/AC INVERTER 2 # LED INDICATOR -	9U5T-14474-DB
6	LYA18 (GN-WH)	22	CTRL MOD. - DC/AC INVERTER 2 # LED INDICATOR +	9U5T-14474-DB
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VMP24 (WH)	22	CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS	97BG-14474-BAA
12	CBP23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER	97BG-14474-BAA
13	HYA01 (OG-GN)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	97BG-14474-BBA\|97BG-14474-BCA
13	HYA01 (OG-GN)	20	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	97BG-14474-BBA\|97BG-14474-BCA
14	HYA02 (OG-WH)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	97BG-14474-BBA\|97BG-14474-BCA
14	HYA02 (OG-WH)	20	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	97BG-14474-BBA\|97BG-14474-BCA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1552

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ANA

Gauge:

14 20

Pin material:

Tin

Cavities:

Vehicle Uses:

Inverter - DC to AC
Radio - Amplifier
Speaker - Subwoofer
