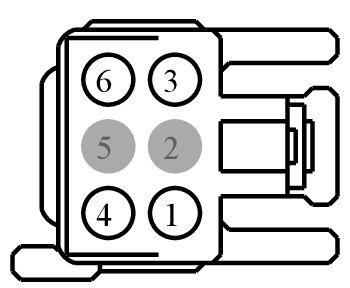

Connector End View (C2292) - AC OUTLET 1
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2292 | AC OUTLET 1 | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AAB | DU2Z-14474-DA | 1.5 |
| 97BG-14474-ABB | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | HYA02 (OG-WH) | 18 | CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B) | 97BG-14474-ABB | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | HYA01 (OG-GN) | 18 | CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A) | 97BG-14474-ABB | ||||
| 4 | RYA18 (VT-GN) | 22 | CTRL MOD. - DC/AC INVERTER 2 # LED INDICATOR - | 97BG-14474-AAB | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | LYA18 (GN-WH) | 22 | CTRL MOD. - DC/AC INVERTER 2 # LED INDICATOR + | 97BG-14474-AAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-962
Service Part Number:
3U2Z- 14S411-JBB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Mating Connector WPT-1299
- Switch - Gear Shift Select/Neutral Safety
- Switch - Overdrive Cancel
- Switch - Power Sliding Door
