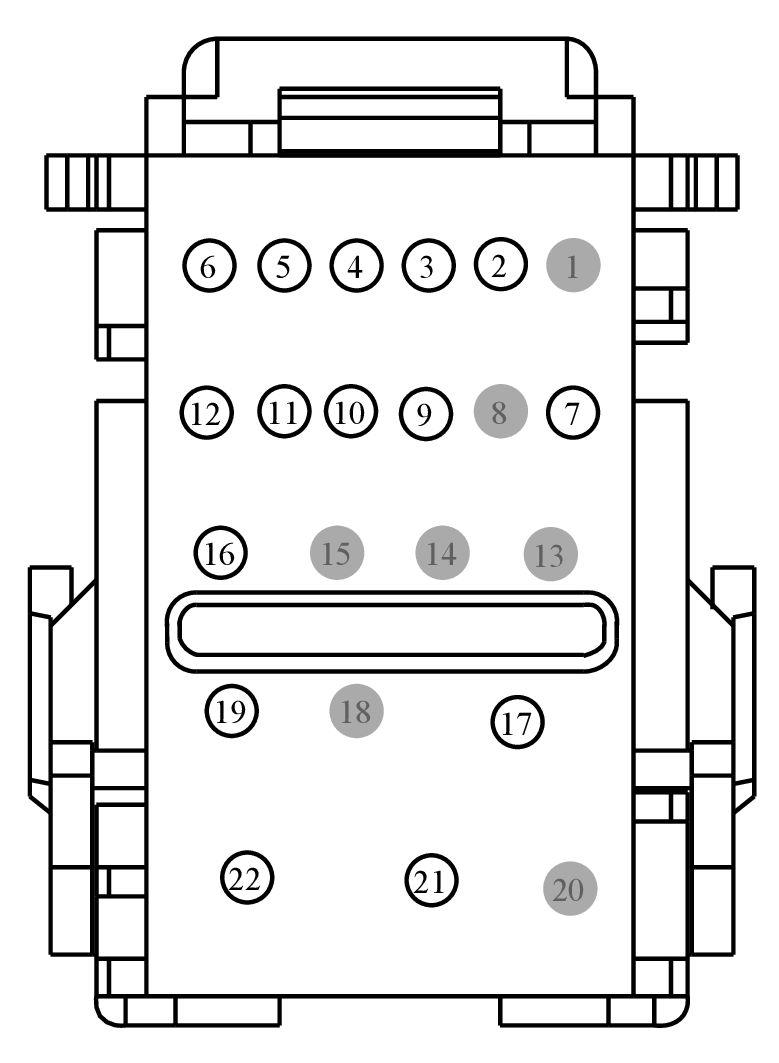

Connector End View (C2280G) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280G |
BODY CONTROL MODULE (BCM) |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| BU5T-14474-UA|7C3T-14474-DA |
Not Available |
| EU5T-14474-BAA |
Not Available |
| BU5T-14474-UA |
DU2Z-14474-DA |
1.5 |
| 7C3T-14474-CA |
DU2Z-14474-DA |
1.5 |
| EU5T-14474-EA |
EU2Z-14474-AA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
CLF05 (BU-GN) |
18 |
CTRL MOD. - BEAM LOW RIGHT |
BU5T-14474-UA |
| 3 |
CLS05 (BU-GY) |
18 |
CTRL MOD. - PARK LAMPS 1 |
BU5T-14474-UA |
| 4 |
CLF04 (BN-BU) |
18 |
CTRL MOD. - BEAM LOW LEFT |
BU5T-14474-UA|7C3T-14474-DA |
| 4 |
CLF04 (BN-GN) |
20 |
CTRL MOD. - BEAM LOW LEFT |
BU5T-14474-UA|7C3T-14474-DA |
| 5 |
CLF34 (YE-OG) |
18 |
CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON |
7C3T-14474-CA |
| 6 |
CLF03 (VT-OG) |
18 |
CTRL MOD. - BEAM HIGH RIGHT |
BU5T-14474-UA |
| 7 |
CBP04 (VT) |
22 |
FUSE - 4 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
7C3T-14474-DA |
| 10 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
7C3T-14474-DA |
| 11 |
CLF02 (GY-BU) |
18 |
CTRL MOD. - BEAM HIGH LEFT |
7C3T-14474-DA |
| 11 |
CLF02 (GY-BN) |
20 |
CTRL MOD. - BEAM HIGH LEFT |
7C3T-14474-DA |
| 12 |
CLF29 (BN) |
18 |
CTRL MOD. - FOG LAMPS FRONT (LEFT) |
7C3T-14474-CA |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
CLN09 (YE-GN) |
18 |
RELAY - BATTERY SAVER (E. G. SWITCH OFF INTERIOR LIGHTING) |
EU5T-14474-EA |
| 17 |
SBB44 (GN-RD) |
8 |
FUSE - 44 OR CIRCUIT BREAKER |
DU5T-14474-UBB |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
CLN72 (GY) |
22 |
CTRL MOD. - ENGINE COMPARTMENT LAMP |
EU5T-14474-BAA |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
SBB50 (YE-RD) |
8 |
FUSE - 50 OR CIRCUIT BREAKER |
DU5T-14474-UBB |
| 22 |
SBB48 (VT-RD) |
8 |
FUSE - 48 OR CIRCUIT BREAKER |
DU5T-14474-UBB |
