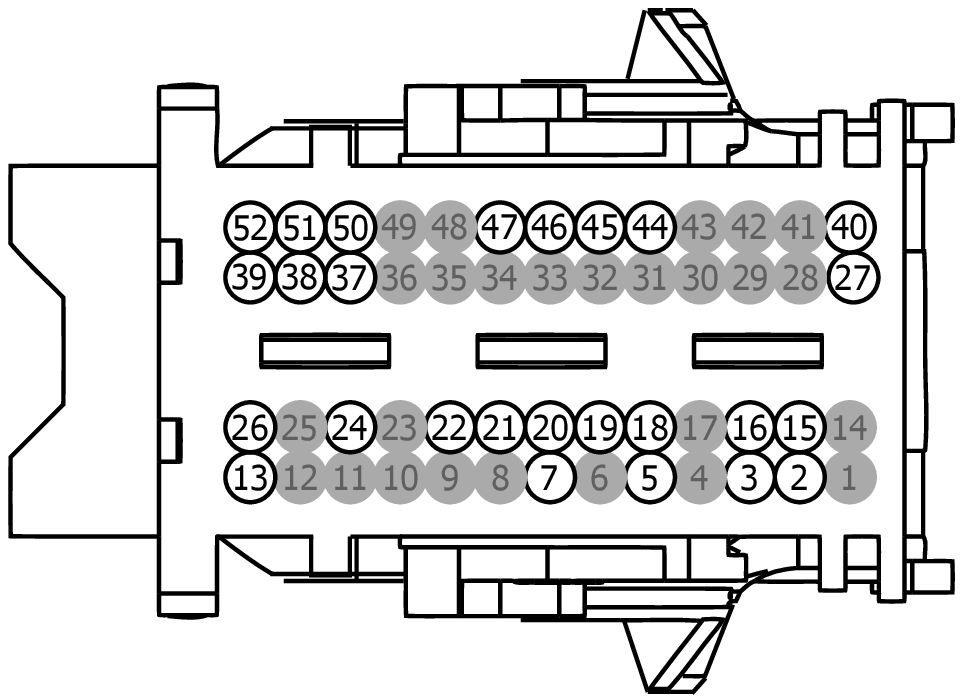

Connector End View (C2280B) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280B |
BODY CONTROL MODULE (BCM) |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
CLS34 (GY) |
22 |
SWITCH - PARK LAMPS |
9U5T-14474-DB |
| 3 |
CLN56 (BN-VT) |
22 |
DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN |
9U5T-14474-DB |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
CPK35 (YE-OG) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + |
9U5T-14474-DB |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CLN55 (YE-VT) |
22 |
DIMMER - IP/SWITCH ILLUMINATION # DIM UP |
9U5T-14474-DB |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
VLN73 (GY-BN) |
22 |
CTRL MOD. - AMBIENT LIGHTING LIN BUS |
9U5T-14474-DB |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
CLF24 (YE-BU) |
22 |
SWITCH - HEADLAMP ON |
9U5T-14474-DB |
| 16 |
CLF23 (WH-VT) |
22 |
SWITCH - HEADLAMP OFF |
9U5T-14474-DB |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
CRH04 (VT-GN) |
22 |
CTRL MOD. - RELAY HORN |
9U5T-14474-DB |
| 18 |
RRH02 (GN-WH) |
22 |
CTRL MOD. - SWITCH HORN |
9U5T-14474-DB |
| 19 |
CLS32 (BN-YE) |
22 |
SWITCH - HAZARD |
9U5T-14474-DB |
| 20 |
CLF21 (GY-VT) |
22 |
SWITCH - FOG LAMPS FRONT |
9U5T-14474-DB |
| 21 |
CLF19 (VT-GN) |
22 |
SWITCH - AUTOLAMP (1) ON |
9U5T-14474-DB |
| 22 |
RLF14 (GY-BN) |
22 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - |
9U5T-14474-DB |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
VLF14 (BU-BN) |
22 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + |
9U5T-14474-DB |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
VPL56 (BU-GY) |
22 |
RECEIVER - REMOTE RF |
9U5T-14474-DB |
| 27 |
RPK07 (GN-OG) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR - |
9U5T-14474-DB |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
* |
* |
Not Used |
N/A |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
* |
* |
Not Used |
N/A |
| 37 |
CDC34 (WH-OG) |
18 |
SWITCH - IGNITION # RUN; START |
9U5T-14474-DB |
| 38 |
CDC30 (BU-GY) |
22 |
SWITCH - IGNITION # KEY IN |
9U5T-14474-DB |
| 39 |
CPK36 (VT-BN) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED |
9U5T-14474-DB |
| 40 |
VPK07 (VT) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR + |
9U5T-14474-DB |
| 41 |
* |
* |
Not Used |
N/A |
| 42 |
* |
* |
Not Used |
N/A |
| 43 |
* |
* |
Not Used |
N/A |
| 44 |
CLN06 (WH) |
18 |
CTRL MOD. - TRUNK/CARGO LAMP |
9U5T-14474-DB |
| 45 |
VLN04 (VT-WH) |
18 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
9U5T-14474-DB |
| 46 |
CET53 (BU-OG) |
22 |
CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK |
9U5T-14474-DB |
| 47 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
9U5T-14474-DB |
| 48 |
* |
* |
Not Used |
N/A |
| 49 |
* |
* |
Not Used |
N/A |
| 50 |
CDC33 (VT-GN) |
22 |
SWITCH - IGNITION # RUN; ACCESSORY |
9U5T-14474-DB |
| 51 |
CDC35 (BU-WH) |
18 |
SWITCH - IGNITION # START |
9U5T-14474-DB |
| 52 |
VDN01 (BU-WH) |
22 |
CTRL MOD. - LIN BUS # SPDJB 1 |
9U5T-14474-DB |
