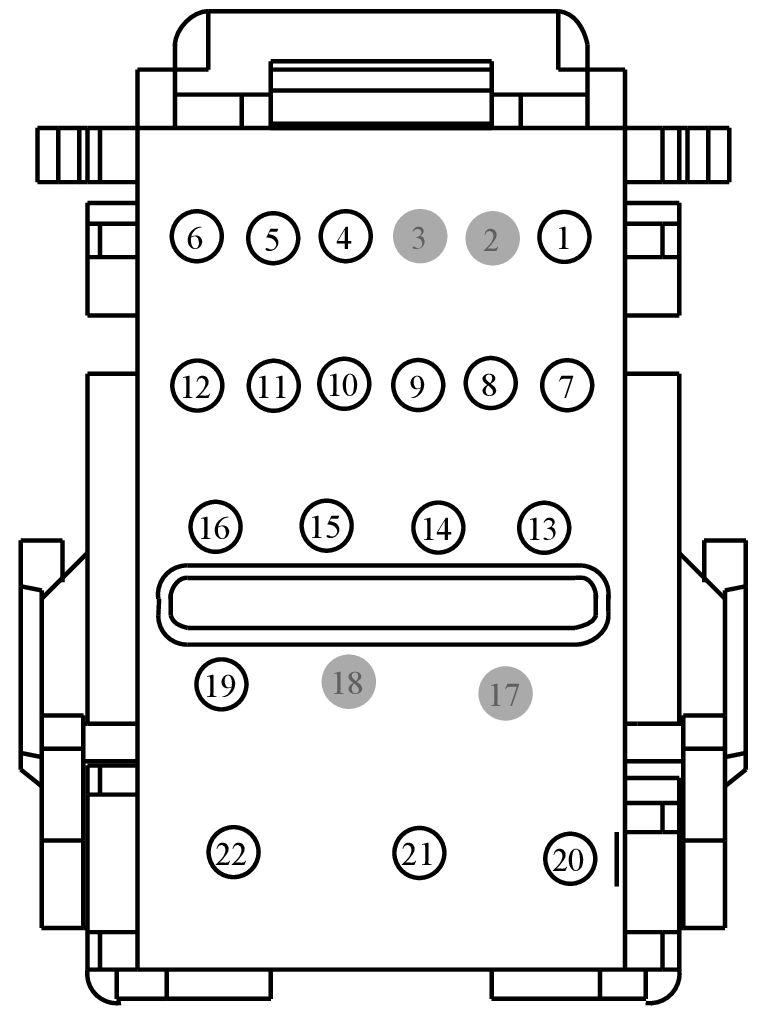

Connector End View (C2280A) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280A |
BODY CONTROL MODULE (BCM) |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 7C3T-14474-DA|BU5T-14474-UA |
Not Available |
| BU5T-14474-UA |
DU2Z-14474-DA |
1.5 |
| XF2T-14474-CA |
EU2Z-14474-AA |
2.8 |
| DU5T-14474-HBA |
EU2Z-14474-AA |
2.8 |
| EU5T-14474-EA |
EU2Z-14474-AA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
BU5T-14474-UA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
CBP35 (YE-GY) |
22 |
FUSE - 35 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 5 |
CBP20 (YE-VT) |
22 |
FUSE - 20 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 6 |
CBP21 (BU-GY) |
22 |
FUSE - 21 OR CIRCUIT BREAKER |
7C3T-14474-DA|BU5T-14474-UA |
| 7 |
CBP19 (BN-WH) |
22 |
FUSE - 19 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 8 |
SBP13 (GY-RD) |
18 |
FUSE - 13 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 9 |
SBP32 (VT-RD) |
22 |
FUSE - 32 OR CIRCUIT BREAKER |
7C3T-14474-DA|BU5T-14474-UA |
| 10 |
SBP12 (GN-RD) |
22 |
FUSE - 12 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 11 |
SBP17 (RD) |
22 |
FUSE - 17 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 12 |
SBP18 (YE-RD) |
22 |
FUSE - 18 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 12 |
SBP18 (YE-RD) |
18 |
FUSE - 18 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 13 |
CBP04 (VT) |
22 |
FUSE - 4 OR CIRCUIT BREAKER |
XF2T-14474-CA |
| 14 |
CDC35 (BU-WH) |
18 |
SWITCH - IGNITION # START |
EU5T-14474-EA |
| 15 |
CBP36 (BU-BN) |
22 |
FUSE - 36 OR CIRCUIT BREAKER |
DU5T-14474-HBA |
| 16 |
CBP37 (WH) |
18 |
FUSE - 37 OR CIRCUIT BREAKER |
EU5T-14474-EA |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
SBP15 (WH-RD) |
18 |
FUSE - 15 OR CIRCUIT BREAKER |
EU5T-14474-EA |
| 20 |
SBP32 (VT-RD) |
20 |
FUSE - 32 OR CIRCUIT BREAKER |
EU5T-14474-EA |
| 21 |
SBP31 (WH-RD) |
18 |
FUSE - 31 OR CIRCUIT BREAKER |
DU5T-14474-TA |
| 22 |
SBP33 (RD) |
18 |
FUSE - 33 OR CIRCUIT BREAKER |
DU5T-14474-TA |
