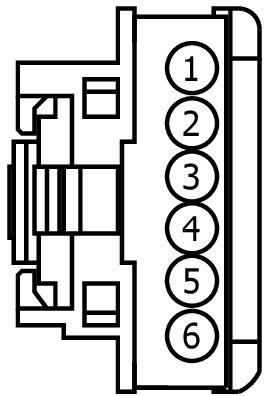

Connector End View (C2247) - IN-VEHICLE TEMPERATURE/HUMIDITY SENSOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2247 | IN-VEHICLE TEMPERATURE/HUMIDITY SENSOR | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-DB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VHA31 (GN-BN) | 22 | SENSOR - REAR TEMP | 9U5T-14474-DB | ||||
| 2 | VH414 (GN-BU) | 22 | SENSOR - FRONT IN-CAR TEMPERATURE 1 OR SINGLE | 9U5T-14474-DB | ||||
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF | 9U5T-14474-DB | ||||
| 4 | VH413 (WH-BU) | 22 | SENSOR - HUMIDITY | 9U5T-14474-DB | ||||
| 5 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN | 9U5T-14474-DB | ||||
| 6 | CBP21 (BU-GY) | 22 | FUSE - 21 OR CIRCUIT BREAKER | 9U5T-14474-DB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1471
Service Part Number:
GU2Z-14S411-PA
Gauge:
20
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Sensor - EATC In Car Temperature
- Switch - Seat Lumbar
- Transceiver - Passive Anti-Theft (PATS)
