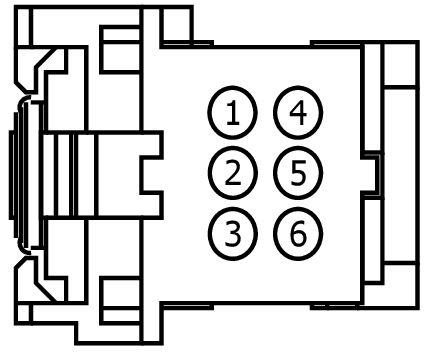

Connector End View (C2195) - IGNITION SWITCH-PUSH BUTTON START

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2195	IGNITION SWITCH-PUSH BUTTON START	14C210			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC35 (BU-WH)	22	SWITCH - IGNITION # START	8U5T-14474-BB
2	CPK36 (VT-BN)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED	8U5T-14474-BB
3	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	8U5T-14474-BB
4	SBP18 (YE-RD)	22	FUSE - 18 OR CIRCUIT BREAKER	8U5T-14474-BB
5	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	8U5T-14474-BB
6	CPK35 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +	8U5T-14474-BB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1518

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-NA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Switch - Deck Lid / Hatch Release
Switch - Lift Gate Shutface
Switch - Power Liftgate
Switch - Shift By Wire Override
