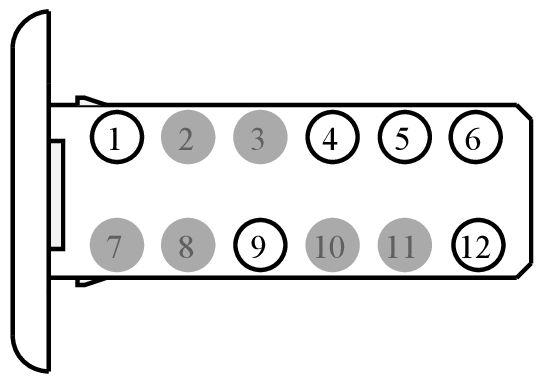

Connector End View (C2123) - FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2123	FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-RSA	FU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP32 (VT-RD)	22	FUSE - 32 OR CIRCUIT BREAKER	96AG-14474-RSA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	96AG-14474-RSA
5	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	96AG-14474-RSA
6	VMP43 (GN-BU)	22	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT +	96AG-14474-RSA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	96AG-14474-RSA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	VMP44 (VT-GY)	22	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT -	96AG-14474-RSA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1278

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ABA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Message Center
Module - Driver Information
Module - Front Interface
