Connector End View (C2095) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C2095 | INLINE | 12A58114401 | Not Available | |||||

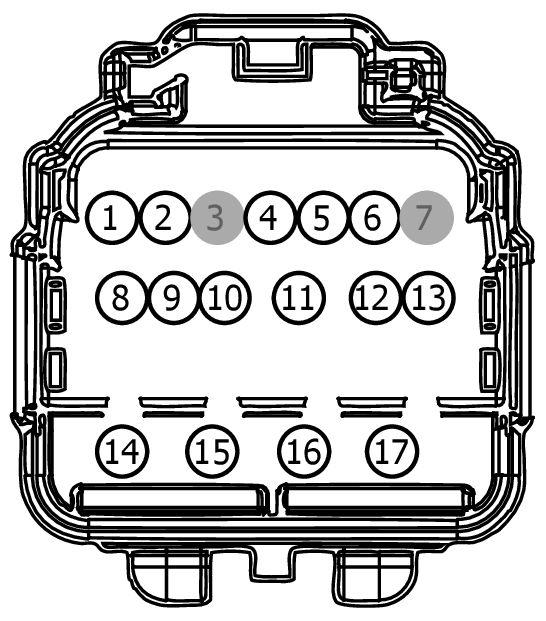

MALE
Harness
12A581

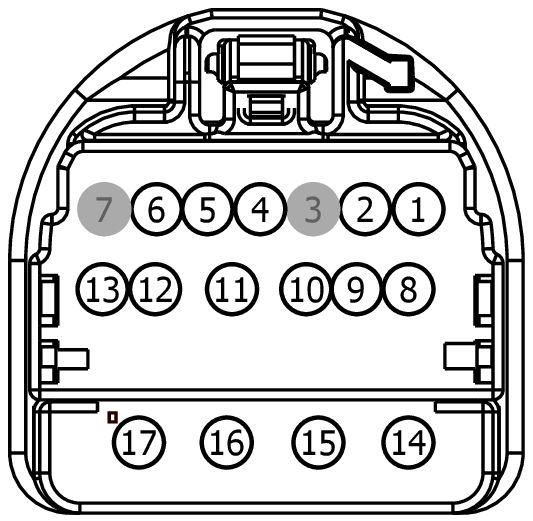

FEMALE
Harness
14401
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ABB | Not Available | |
| 97BG-14421-AAB | Not Available | |
| EU5T-14474-GA | Not Available | |
| EU5T-14474-JA | Not Available | |
| DU5T-14421-FA | EU2Z-14421-BA | 0.64 |
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| EU5T-14421-CA | EU2Z-14421-DA | 2.8 |
| EU5T-14421-BA | EU2Z-14421-DA | 2.8 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| EU5T-14474-EA | EU2Z-14474-AA | 2.8 |
| EU5T-14474-HA | EU2Z-14474-AA | 2.8 |
| EU5T-14421-DA | EU2Z-14421-DA | 2.8 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CDC35 (BU-WH) | 22 | DU5T-14421-FA | |||
| 2 | CRD02 (BN-BU) | 22 | DU5T-14421-FA | |||
| 3 | * | * | N/A | |||
| 4 | CDC54 (WH-GN) | 18 | 9U5T-14421-BA | |||
| 5 | CCF06 (BU-GN) | 18 | 9U5T-14421-BA | |||
| 6 | CCF22 (BU-OG) | 18 | 9U5T-14421-BA | |||
| 7 | * | * | N/A | |||
| 8 | CCB12 (GN) | 22 | DU5T-14421-FA | |||
| 9 | VH101 (WH-VT) | 18 | 9U5T-14421-BA | |||
| 10 | CH123 (VT-GN) | 22 | DU5T-14421-FA | |||
| 11 | SBB54 (BN-RD) | 12 | EU5T-14421-CA | |||
| 12 | SBB90 (YE-RD) | 18 | 97BG-14421-ABB | |||
| 13 | CCB08 (VT-WH) | 22 | 97BG-14421-AAB | |||
| 14 | SBB55 (WH-RD) | 18 | EU5T-14421-DA | |||
| 15 | CBB64 (VT-GN) | 16 | EU5T-14421-BA | |||
| 16 | CBB62 (GN-OG) | 16 | EU5T-14421-BA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CDC35 (BU-WH) | 18 | 8U5T-14474-BB | |||
| 2 | CRD02 (BN-BU) | 22 | 8U5T-14474-BB | |||
| 3 | * | * | N/A | |||
| 4 | CDC54 (WH-GN) | 22 | 8U5T-14474-BB | |||
| 5 | CCF06 (BU-GN) | 22 | 8U5T-14474-BB | |||
| 6 | CCF22 (BU-OG) | 22 | 8U5T-14474-BB | |||
| 7 | * | * | N/A | |||
| 8 | CCB12 (GN) | 22 | 8U5T-14474-BB | |||
| 9 | VH101 (WH-VT) | 22 | 8U5T-14474-BB | |||
| 10 | CH123 (VT-GN) | 22 | 8U5T-14474-BB | |||
| 11 | SBB54 (BN-RD) | 12 | EU5T-14474-GA | |||
| 12 | SBB90 (YE-RD) | 18 | 7C3T-14474-DA | |||
| 13 | CCB08 (VT-WH) | 22 | 7C3T-14474-DA | |||
| 14 | SBB55 (WH-RD) | 20 | EU5T-14474-JA | |||
| 15 | CBB64 (VT-GN) | 18 | EU5T-14474-EA | |||
| 16 | CBB62 (GN-OG) | 18 | EU5T-14474-EA | |||
