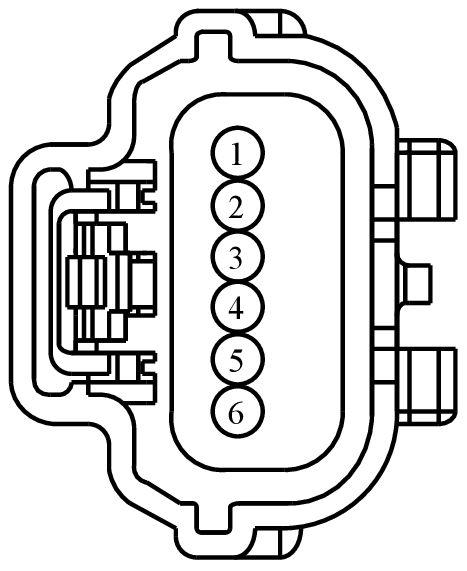

Connector End View (C2040) - ACCELERATOR PEDAL POSITION (APP) SENSOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2040 |
ACCELERATOR PEDAL POSITION (APP) SENSOR |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 7S4T-14474-AB |
DU2Z-14474-BA |
0.64 |
| 7S4T-14474-BB |
DU2Z-14474-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
LE136 (GN-OG) |
18 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) |
7S4T-14474-AB |
| 2 |
VE701 (YE-OG) |
22 |
SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) |
7S4T-14474-BB |
| 3 |
RE136 (VT-GN) |
18 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) |
7S4T-14474-AB |
| 4 |
RE137 (YE-GN) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) |
7S4T-14474-BB |
| 5 |
VE702 (BU-WH) |
18 |
SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) |
7S4T-14474-AB |
| 6 |
LE137 (BU-GY) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) |
7S4T-14474-BB |
