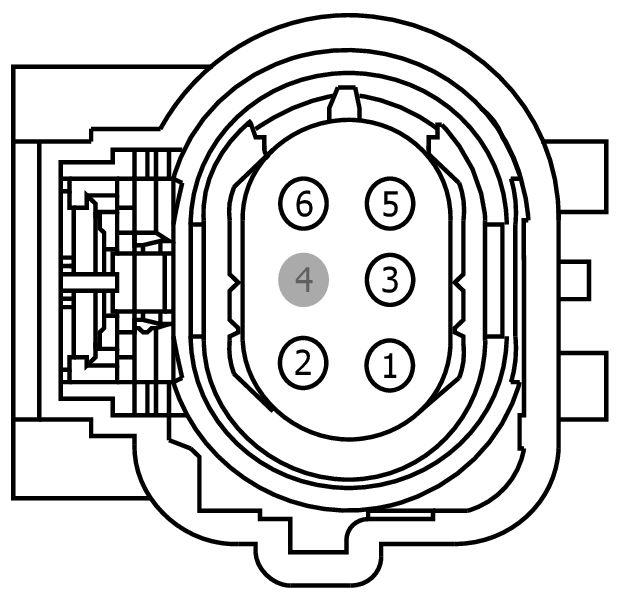

Connector End View (C1910) - INTAKE THROTTLE ACTUATOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1910 |
INTAKE THROTTLE ACTUATOR |
12B637 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 6G9T-14474-DGA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
LE423 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) |
6G9T-14474-DGA |
| 2 |
CE426 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) |
6G9T-14474-DGA |
| 3 |
RE405 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) |
6G9T-14474-DGA |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
VE820 (GY) |
18 |
SENSOR - THROTTLE POSITION (TPS) |
6G9T-14474-DGA |
| 6 |
CE412 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) |
6G9T-14474-DGA |
