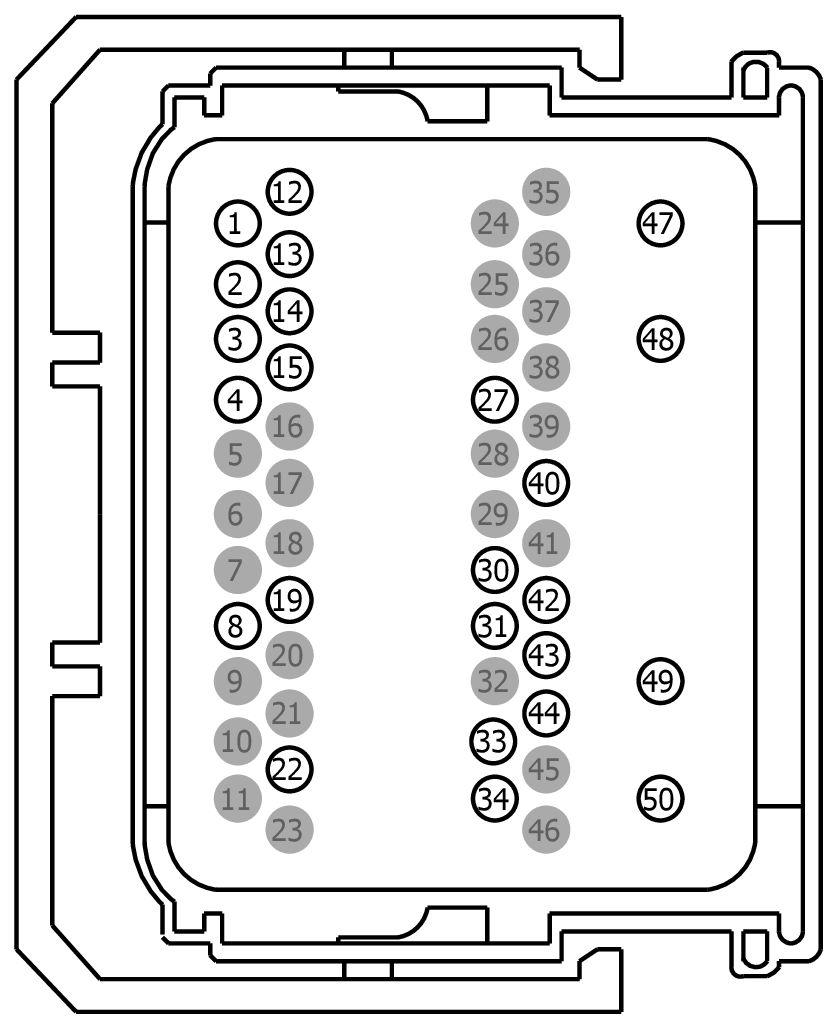

Connector End View (C1750) - TRANSMISSION CONTROL MODULE (TCM)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1750 |
TRANSMISSION CONTROL MODULE (TCM) |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 7S4T-14474-AB |
DU2Z-14474-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CET07 (GY-OG) |
18 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] |
7S4T-14474-AB |
| 2 |
CET11 (GN-OG) |
18 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 7 (PC7) [EPC] [VFS] |
7S4T-14474-AB |
| 3 |
CET06 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] |
7S4T-14474-AB |
| 4 |
CET09 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] |
7S4T-14474-AB |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
LE111 (VT-GN) |
18 |
CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) |
7S4T-14474-AB |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
RE407 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
7S4T-14474-AB |
| 13 |
CET08 (BN-WH) |
18 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] |
7S4T-14474-AB |
| 14 |
CET05 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] |
7S4T-14474-AB |
| 15 |
CET10 (BU-GY) |
18 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] |
7S4T-14474-AB |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
CET34 (BN-GN) |
18 |
SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS) |
7S4T-14474-AB |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
CET40 (GN-OG) |
18 |
SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN) |
7S4T-14474-AB |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
* |
* |
Not Used |
N/A |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
* |
* |
Not Used |
N/A |
| 27 |
VET33 (WH-OG) |
18 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + |
7S4T-14474-AB |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
CET43 (GY) |
18 |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
7S4T-14474-AB |
| 31 |
CBB33 (WH-BN) |
18 |
FUSE - 33 OR CIRCUIT BREAKER |
7S4T-14474-AB |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
CET42 (GN-VT) |
18 |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
7S4T-14474-AB |
| 34 |
VET27 (BN-YE) |
18 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
7S4T-14474-AB |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
* |
* |
Not Used |
N/A |
| 37 |
* |
* |
Not Used |
N/A |
| 38 |
* |
* |
Not Used |
N/A |
| 39 |
* |
* |
Not Used |
N/A |
| 40 |
VET32 (VT) |
18 |
SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) |
7S4T-14474-AB |
| 41 |
* |
* |
Not Used |
N/A |
| 42 |
RET04 (YE-OG) |
18 |
CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) |
7S4T-14474-AB |
| 43 |
VDB05 (WH) |
18 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
7S4T-14474-AB |
| 44 |
VDB04 (WH-BU) |
18 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
7S4T-14474-AB |
| 45 |
* |
* |
Not Used |
N/A |
| 46 |
* |
* |
Not Used |
N/A |
| 47 |
CET25 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) |
7C3T-14474-DA |
| 48 |
SBB94 (BN-RD) |
20 |
FUSE - 94 OR CIRCUIT BREAKER |
7C3T-14474-DA |
| 49 |
RET24 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) |
7C3T-14474-DA |
| 50 |
GD112 (BK-GN) |
18 |
GROUND - COWL TOP LEFT |
7C3T-14474-DA |
