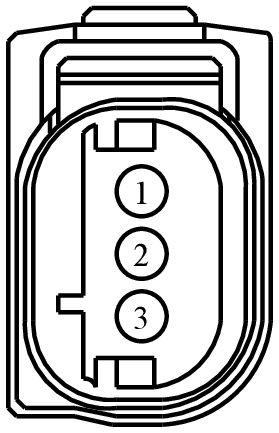

Connector End View (C1653) - CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1653 | CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11) | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE736 (WH-GN) | 20 | SENSOR - CAMSHAFT POSITION BANK 1 EX | 2L1T-14474-LA | ||||
| 2 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | 2L1T-14474-LA | ||||
| 3 | LE111 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) | 2L1T-14474-LA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1039
Service Part Number:
9U2Z-14S411-AGA
Gauge:
18
Pin material:
Tin (greased)
Cavities:
3
Vehicle Uses:
- Sensor - Adjustable Pedal
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
