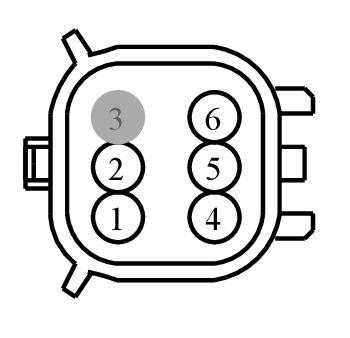

Connector End View (C1631) - UNIVERSAL HEATED OXYGEN SENSOR BANK 1 SENSOR 1 (HO2S11)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1631 | UNIVERSAL HEATED OXYGEN SENSOR BANK 1 SENSOR 1 (HO2S11) | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7U5T-14421-BA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK02 (GN) | 20 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | 7U5T-14421-BA | ||||
| 2 | CE235 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR11) | 7U5T-14421-BA | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | VE826 (BN-VT) | 20 | SENSOR - UNIVERSAL HEATED OXYGEN 1ST (UO2SN-11) | 7U5T-14421-BA | ||||
| 5 | LE448 (GY-BU) | 20 | CTRL MOD. -POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF - 11) | 7U5T-14421-BA | ||||
| 6 | LE451 (BN-YE) | 20 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) | 7U5T-14421-BA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1426
Service Part Number:
FU2Z-14S411-TA
Gauge:
16
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
- Lamp - Park/Turn/Stop
- Sensor - Coolant Temperature
- Sensor - O2 (HEGO/ EGO)
