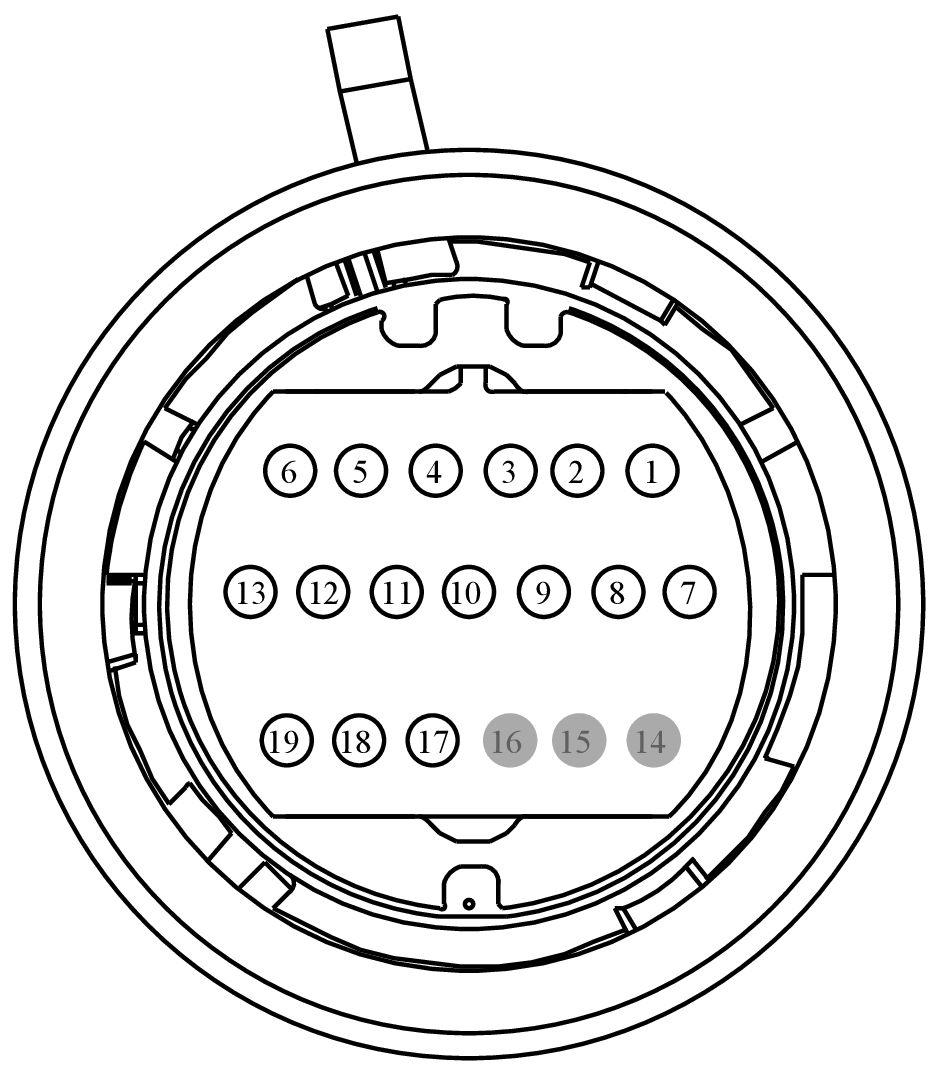

Connector End View (C1623) - 6R140 TRANSMISSION

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1623	6R140 TRANSMISSION	12C508/7C078			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7U5T-14474-TA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CET25 (BU-GN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	7U5T-14474-TA
1	CET25 (BU-GN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	7C3T-14474-DA
2	CET25 (BU-GN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	7C3T-14474-DA
2	CET25 (BU-GN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	7U5T-14474-TA
3	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS]	7U5T-14474-TA
3	CET05 (WH-GN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS]	7U5T-14474-TA
3	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS]	7C3T-14474-DA
4	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS]	7C3T-14474-DA
4	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS]	7U5T-14474-TA
5	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS]	7U5T-14474-TA
5	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS]	7C3T-14474-DA
6	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS]	7C3T-14474-DA
6	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS]	7U5T-14474-TA
7	CET09 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS]	7U5T-14474-TA
7	CET09 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS]	7C3T-14474-DA
8	CET10 (BU-GY)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS]	7C3T-14474-DA
8	CET10 (BU-GY)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS]	7U5T-14474-TA
9	CET11 (GN-OG)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 7 (PC7) [EPC] [VFS]	7U5T-14474-TA
9	CET11 (GN-OG)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 7 (PC7) [EPC] [VFS]	7C3T-14474-DA
10	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	7C3T-14474-DA
10	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	7U5T-14474-TA
11	RET33 (WH-VT)	20	TSS	7U5T-14474-TA
11	VET33 (WH-OG)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) +	7C3T-14474-DA
12	LE111 (VT-GN)	20	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)	7C3T-14474-DA
12	LE111 (VT-GN)	20	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)	7U5T-14474-TA
13	VET32 (VT)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P)	7U5T-14474-TA
13	VET32 (VT)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P)	7C3T-14474-DA
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	RET04 (YE-OG)	20	CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS)	7C3T-14474-DA
17	RET04 (YE-OG)	20	CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS)	7U5T-14474-TA
18	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	7U5T-14474-TA
18	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	7C3T-14474-DA
19	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	7C3T-14474-DA
19	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	7U5T-14474-TA

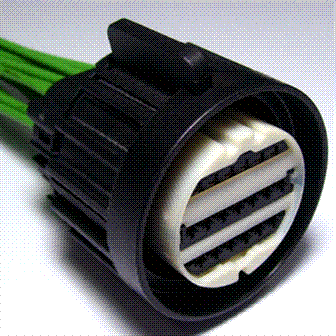

Available Pigtail Kits

Pigtail Kit Part Number WPT-1398

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-CA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Transmission - Bulkhead
