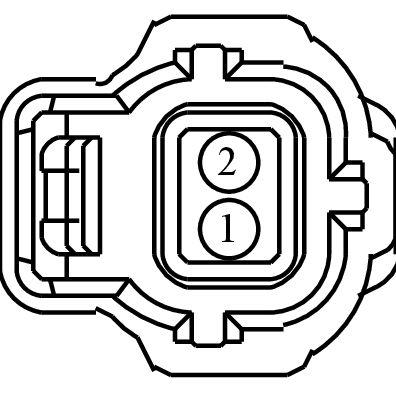

Connector End View (C1622) - EGR COOLER BYPASS VALVE SOLENOID
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1622 | EGR COOLER BYPASS VALVE SOLENOID | 12B637 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 98AG-14474-AA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK02 (GN) | 20 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | 98AG-14474-AA | ||||
| 2 | VE917 (BN-YE) | 20 | VALVE - EXHAUST GAS RECIRCULATION COOLER BYPASS (EGRCBV) | 98AG-14474-AA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-357
Service Part Number:
3U2Z-14S411-HVA
Gauge:
14
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Fuel Pump/Sending Unit
- Motor - Idle Air Control
- Motor - Rear Window Washer Fluid Pump
- Motor - Windshield Washer Fluid Pump
- Sensor - Coolant Temperature
- Sensor - Washer Fluid level
