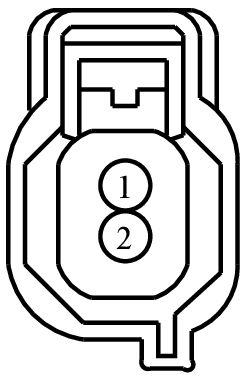

Connector End View (C1614) - KNOCK SENSOR 1 (KS1)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1614 | KNOCK SENSOR 1 (KS1) | GY | 14B485 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number |
|---|---|---|---|---|---|
| 1 | VE801 (VT-OG) | 18 | SENSOR - KNOCK 1ST OR UNIQUE (KS1+) | 6.8L | N/A |
| 1 | VE801 (VT-OG) | 20 | SENSOR - KNOCK 1ST OR UNIQUE (KS1+) | 6.2L | N/A |
| 2 | RE323 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST OR UNIQUE (KS1-) | 6.2L | N/A |
| 2 | RE323 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST OR UNIQUE (KS1-) | 6.8L | N/A |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1116
Service Part Number:
AU2Z-14S411-BJA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Lamp - Running Board
- Sensor - Knock
- Sensor - Speed
- Sensor - Water in Fuel
