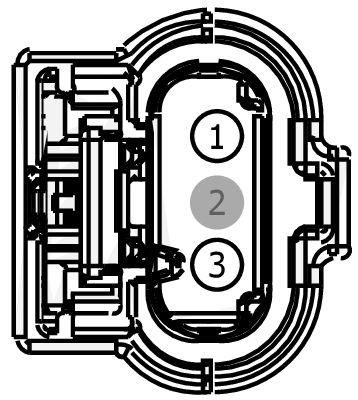

Connector End View (C1607) - COIL ON PLUG (COP) 7
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1607 | COIL ON PLUG (COP) 7 | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK04 (VT) | 20 | FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) | EU5T-14474-EAB | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CE309 (YE-GY) | 20 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 7 (COP-G) | EU5T-14474-EAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1602
Service Part Number:
KU2Z-14S411-BA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Sensor - Delta Pressure Feedback EGR
- Sensor - Fuel Rail Pressure
Pigtail Kit Part Number WPT-1558
Service Part Number:
JU2Z-14S411-ASA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
