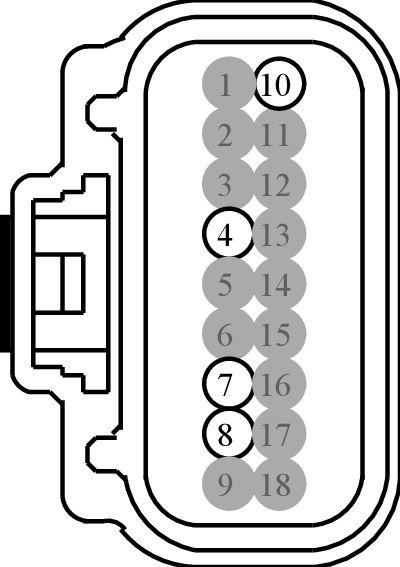

Connector End View (C1582) - CRUISE CONTROL MODULE (CCM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1582	CRUISE CONTROL MODULE (CCM)	15K867			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-RA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	GD129 (BK-YE)	18	GROUND - HEADLAMP PANEL/GOR LEFT	3F2T-14474-RA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VDB26 (GY-BU)	18	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	3F2T-14474-RA
8	VDB25 (GN-OG)	18	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	3F2T-14474-RA
9	*	*	Not Used	N/A
10	CBB31 (BU-OG)	18	FUSE - 31 OR CIRCUIT BREAKER	3F2T-14474-RA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A

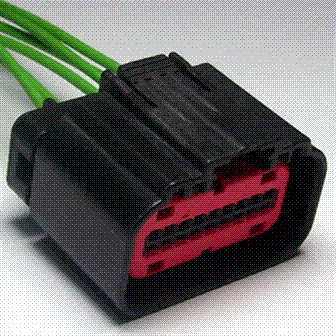

Available Pigtail Kits

Pigtail Kit Part Number WPT-1342

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-GA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Adaptive Cruise Control

Pigtail Kit Part Number WPT-1411

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-GB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Adaptive Cruise Control
Module - Occupant Classification
Module - Reverse Park Aid (RPA)
