Connector End View (C1581) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1581 | INLINE | 2B57214405 | See Below | |||||

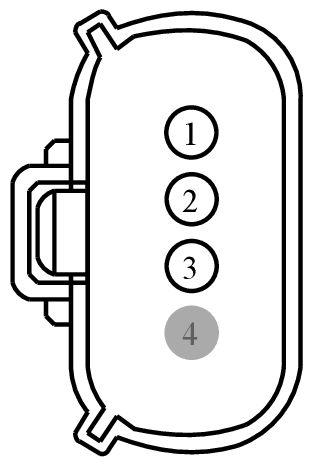

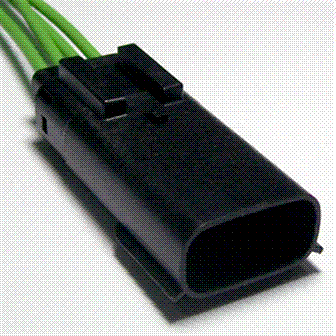

MALE
Harness
2B572

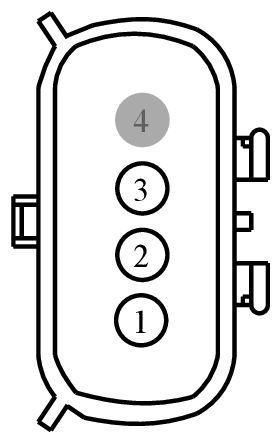

FEMALE
Harness
14405
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VE823 (BU-BN) | 18 | BU5T-14421-HA | |||
| 2 | RE407 (YE-VT) | 18 | BU5T-14421-HA | |||
| 3 | GD476 (BK-WH) | 18 | BU5T-14421-HA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VE823 (BU-BN) | 22 | BU5T-14474-UA | |||
| 2 | RE407 (YE-VT) | 22 | BU5T-14474-UA | |||
| 3 | GD476 (BK-WH) | 22 | BU5T-14474-UA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1432
Service Part Number:
FU2Z-14S411-ABA
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Lamp - Flashing LED
- Lamp - Park/Turn/Stop
- Speaker - Front
Pigtail Kit Part Number WPT-925
Service Part Number:
8U2Z-14S411-TA
Gauge:
14
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- A/C Compressor Clutch
- Lamp - Headlamp - High/Low Beam
