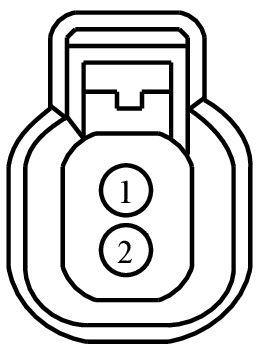

Connector End View (C1562) - FUEL INJECTOR 2
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1562 | FUEL INJECTOR 2 | GY | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7C3T-14474-RA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE206 (GY-YE) | 20 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + | 7C3T-14474-RA | ||||
| 2 | CBK01 (BU) | 20 | FUSE - 1 OR CIRCUIT BREAKER (VPWR F) | 7C3T-14474-RA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1051
Service Part Number:
5U2Z-14S411-ZB
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Fuel Injector
- Horn
- Switch - Backup Lamp
- Switch - Hood Ajar
