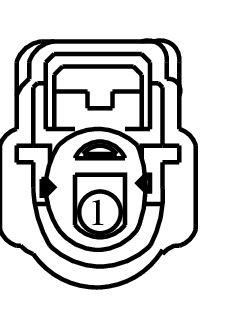

Connector End View (C1544) - IGNITION TRANSFORMER CAPACITOR 1
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1544 | IGNITION TRANSFORMER CAPACITOR 1 | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AEA|F8DB-14474-CA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK04 (VT) | 20 | FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) | 97BG-14474-AEA|F8DB-14474-CA | ||||
| 1 | CBK04 (VT) | 18 | FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) | 97BG-14474-AEA|F8DB-14474-CA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1253
Service Part Number:
6U2Z-14S411-KB
Gauge:
16
Pin material:
Tin (greased)
Cavities:
1
Vehicle Uses:
- Capacitor - Ignition/Radio
