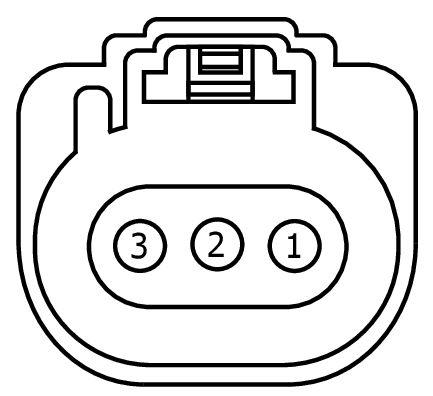

Connector End View (C1509B) - HEADLAMP, LEFT LOWER
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1509B | HEADLAMP, LEFT LOWER | 12A581 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7C3T-14474-RA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLF04 (BN-BU) | 18 | CTRL MOD. - BEAM LOW LEFT | 7C3T-14474-RA | ||||
| 2 | GD129 (BK-YE) | 18 | GROUND - HEADLAMP PANEL/GOR LEFT | 7C3T-14474-RA | ||||
| 3 | CLF02 (GY-BN) | 18 | CTRL MOD. - BEAM HIGH LEFT | 7C3T-14474-RA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1499
Service Part Number:
3U2Z-14S411-FKAF
Gauge:
16
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
- Sensor - Battery Current
