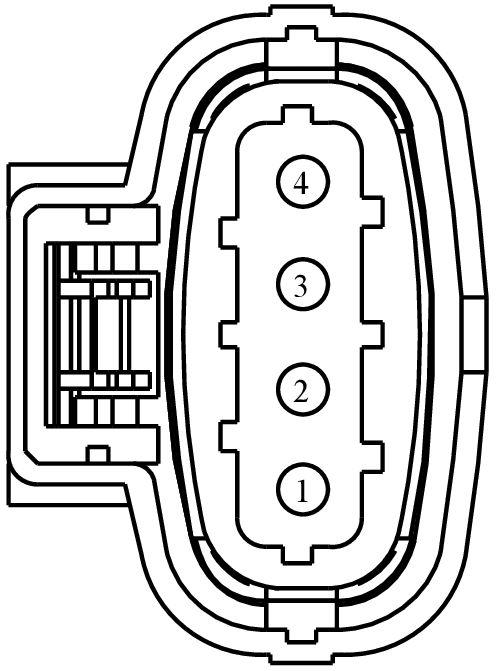

Connector End View (C1454) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1454 | MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14474-GBA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) | DU5T-14474-GBA | ||||
| 2 | VE740 (VT-GY) | 20 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | DU5T-14474-GBA | ||||
| 3 | LE423 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | DU5T-14474-GBA | ||||
| 4 | VE803 (BU-GN) | 18 | SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + | DU5T-14474-GBA | ||||

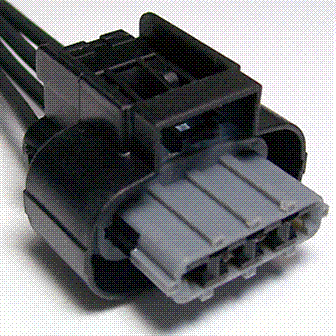

Available Pigtail Kits
Pigtail Kit Part Number WPT-1232
Service Part Number:
BU2Z-14S411-ATA
Gauge:
14
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Sensor - Manifold Pressure/Intake Temperature
