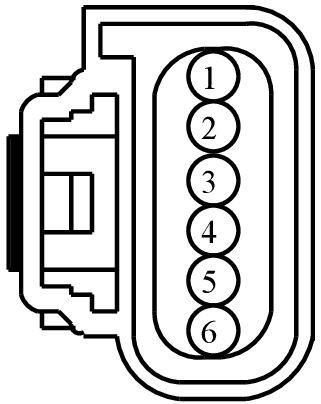

Connector End View (C1449) - ELECTRONIC THROTTLE CONTROL (ETC)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1449 | ELECTRONIC THROTTLE CONTROL (ETC) | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-RA | DU2Z-14474-BA | 0.64 |
| 1L2T-14474-CA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE412 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) | 3F2T-14474-RA | ||||
| 2 | CE426 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) | 3F2T-14474-RA | ||||
| 3 | VE818 (BN) | 18 | SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) | 1L2T-14474-CA | ||||
| 4 | RE134 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | 1L2T-14474-CA | ||||
| 5 | LE134 (YE) | 18 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | 1L2T-14474-CA | ||||
| 6 | VE819 (GN-VT) | 18 | SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) | 1L2T-14474-CA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1063
Service Part Number:
AU2Z-14S411-MA
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Control - Electronic Throttle
