Connector End View (C1390) - TURBOCHARGER ACTUATOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1390 | TURBOCHARGER ACTUATOR | 12B637 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1S7T-14474-AB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE435 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # TURBO CONTROL VALVE | 1S7T-14474-AB | ||||
| 2 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | 1S7T-14474-AB | ||||

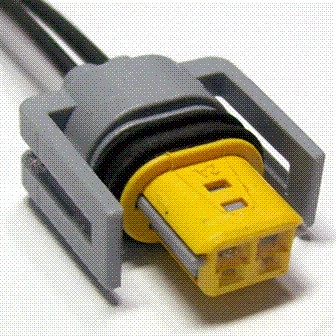

Available Pigtail Kits
Pigtail Kit Part Number WPT-1069
Service Part Number:
AU2Z-14S411-KA
Gauge:
18
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Actuator - Turbocharger Waste Gate
