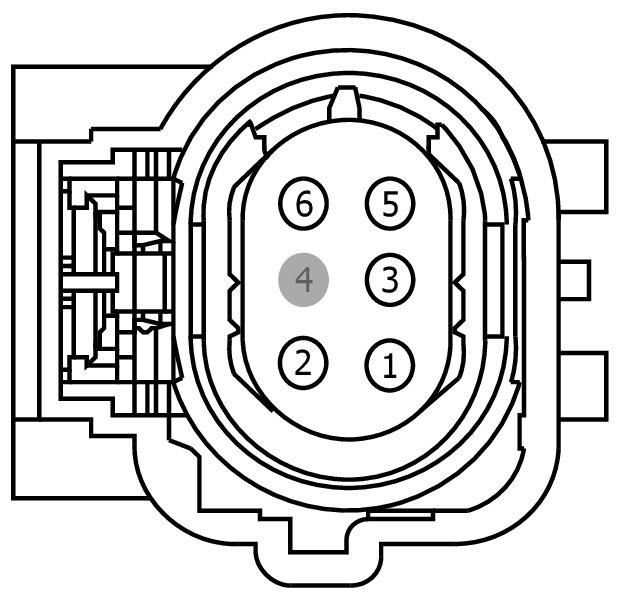

Connector End View (C1389) - EGR VALVE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1389 |
EGR VALVE |
12B637 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 6G9T-14474-DGA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RE405 (GN-WH) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) |
6G9T-14474-DGA |
| 2 |
CE102 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC) (-) |
6G9T-14474-DGA |
| 3 |
VE721 (WH-OG) |
18 |
SENSOR - EXHAUST GAS RECIRCULATION VALVE POSITION |
6G9T-14474-DGA |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
LE458 (BU-WH) |
18 |
CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT DRIVER SIDE - |
6G9T-14474-DGA |
| 6 |
CE101 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC) (+) |
6G9T-14474-DGA |
