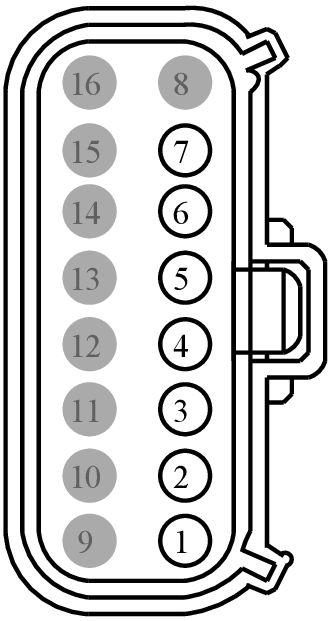

Connector End View (C1285) - HEADLAMP, RIGHT
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1285 | HEADLAMP, RIGHT | 12A581 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLS25 (YE-VT) | 22 | CTRL MOD. - TURN LAMP RIGHT FRONT | BU5T-14474-UA | ||||
| 2 | CLS58 (BU-WH) | 22 | LAMP - TURN FRONT RIGHT # SIGNAL OUT | BU5T-14474-UA | ||||
| 3 | CLS05 (BU-BN) | 22 | CTRL MOD. - PARK LAMPS 1 | BU5T-14474-UA | ||||
| 4 | CLF62 (VT-WH) | 22 | CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT | BU5T-14474-UA | ||||
| 5 | CLF05 (BU-GN) | 18 | CTRL MOD. - BEAM LOW RIGHT | BU5T-14474-UA | ||||
| 6 | CLF03 (VT-OG) | 18 | CTRL MOD. - BEAM HIGH RIGHT | BU5T-14474-UA | ||||
| 7 | GD131 (BK-GY) | 18 | GROUND - HEADLAMP PANEL/GOR RIGHT | BU5T-14474-UA | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1279
Service Part Number:
CU2Z-14S411-ADA
Gauge:
16
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
- Mating Connector WPT-1404
- Module - Heated Seat (driver)
- Module - Transfer Case Shift Control
