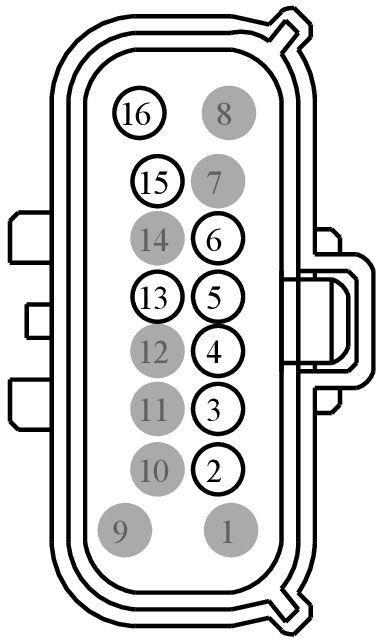

Connector End View (C1273C) - GLOW PLUG CONTROL MODULE (GPCM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1273C	GLOW PLUG CONTROL MODULE (GPCM)	12A581			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.5
97BG-14474-BFA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	CE513 (VT-GN)	18	CONTROLLER - GLOW PLUG	BU5T-14474-UA
3	VE348 (GN-OG)	18	CTRL MOD. - POWERTRAIN # NOX CAN BUS #2 HIGH	BU5T-14474-UA
4	VE349 (BN-YE)	18	CTRL MOD. - POWERTRAIN # NOX CAN BUS #2 LOW	BU5T-14474-UA
5	GD112 (BK-GN)	20	GROUND - COWL TOP LEFT	7C3T-14474-DA
6	CBK04 (VT)	18	FUSE - 4 OR CIRCUIT BREAKER (VPWR 4)	7C3T-14474-DA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CE352 (YE-GY)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PRESSURE LINE HEATER (HH2) PWR	7C3T-14474-DA
14	*	*	Not Used	N/A
15	CE356 (BU-OG)	18	CTRL MOD. - POWERTRAIN # REDUCTANT TANK HEATER (HH1) PWR	7C3T-14474-DA
16	CE609 (WH-OG)	10	RELAY - GLOW PLUGS	97BG-14474-BFA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1541

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-KA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline
In-Line - Auxiliary Engine Connector
Module - Glow Plug
