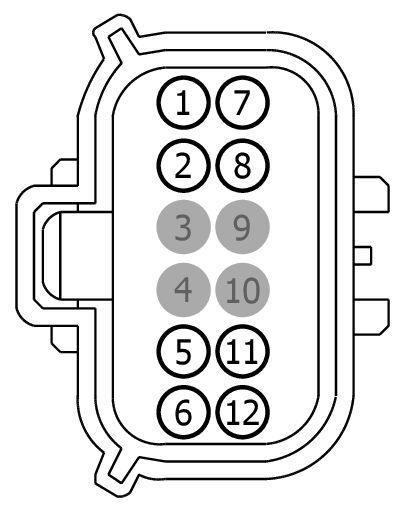

Connector End View (C1273B) - GLOW PLUG CONTROL MODULE (GPCM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1273B	GLOW PLUG CONTROL MODULE (GPCM)	12A581			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-EA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE243 (GY-VT)	14	CTRL MOD. - GLOW PLUG 1 OR ELECTRONIC COLD START	7C3T-14474-EA
2	CE244 (BU-BN)	14	CTRL MOD. - GLOW PLUG 2 OR ELECTRONIC COLD START	7C3T-14474-EA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CE245 (VT-WH)	14	CTRL MOD. - GLOW PLUG 3 OR ELECTRONIC COLD START	7C3T-14474-EA
6	CE246 (YE-BU)	14	CTRL MOD. - GLOW PLUG 4 OR ELECTRONIC COLD START	7C3T-14474-EA
7	CE247 (GN-WH)	14	CTRL MOD. - GLOW PLUG 5	7C3T-14474-EA
8	CE248 (WH-BN)	14	CTRL MOD. - GLOW PLUG 6	7C3T-14474-EA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CE251 (BN-GN)	14	CTRL MOD. - GLOW PLUG 7	7C3T-14474-EA
12	CE252 (GY)	14	CTRL MOD. - GLOW PLUG 8	7C3T-14474-EA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1544

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AMB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - Front Turn
Lamp - Headlamp - High/Low Beam
Mirror - Sideview / Heated
Module - Battery Energy Control
Module - Extended Power
Module - Gear Shift
Module - Glow Plug
Module - Transmission Ranger Control
Trailer Tow - Vehicle Side

Pigtail Kit Part Number WPT-1125

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AMA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Mirror - Sideview
