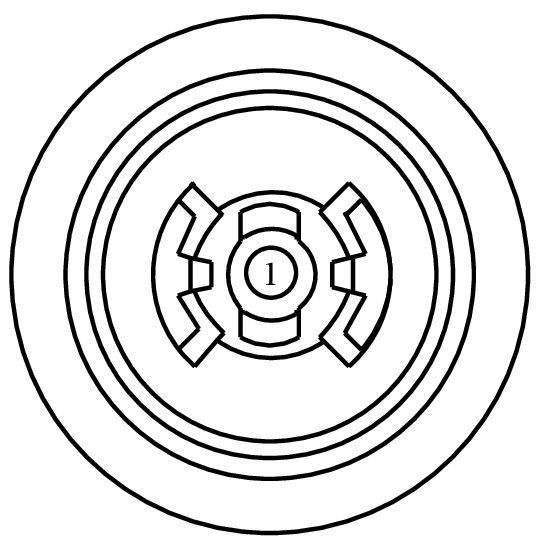

Connector End View (C1269) - GLOW PLUG 7
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1269 | GLOW PLUG 7 | 12B637 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14487-AA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE251 (BN-GN) | 12 | CTRL MOD. - GLOW PLUG 7 | BU5T-14487-AA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1059
Service Part Number:
AU2Z-14S411-XA
Gauge:
12
Pin material:
Silver
Cavities:
1
Vehicle Uses:
- Glow Plug
