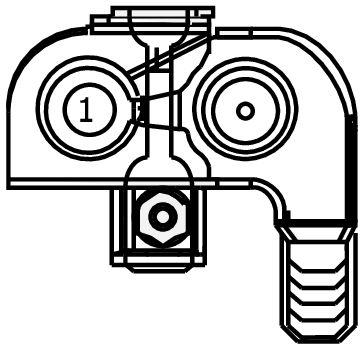

Connector End View (C1249B) - BATTERY, SECONDARY
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1249B |
BATTERY, SECONDARY |
14B060 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD108 (BK-VT) |
12 |
GROUND - CHASSIS / BATTERY |
N/A |
| 1 |
GD108 (BK-VT) |
10 |
GROUND - CHASSIS / BATTERY |
N/A |
