Connector End View (C1232T) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1232T POWERTRAIN CONTROL MODULE (PCM) 14406 part# N/A Not Available

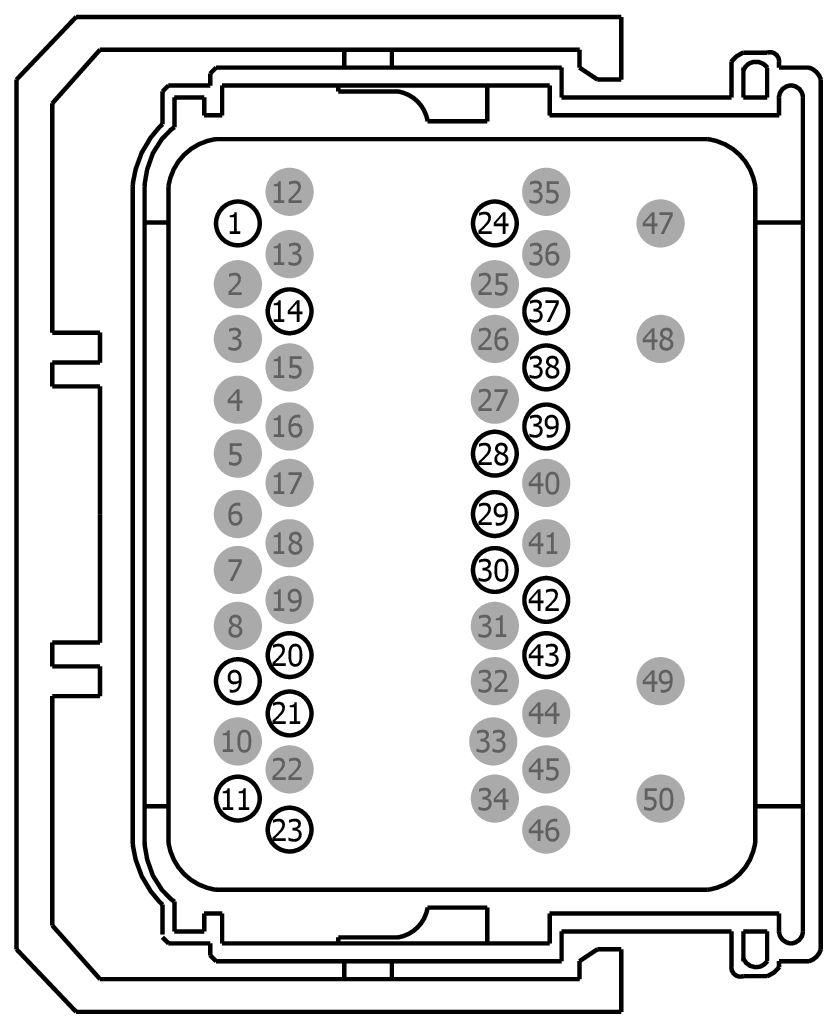

GFDWR56543Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
7S4T-14474-AB DU2Z-14474-BA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 LE461 (GY-YE) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2) 7S4T-14474-AB
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 VE723 (GN-VT) 20 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) + 7S4T-14474-AB
10 * * Not Used N/A
11 LE425 (BU-BN) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF) 7S4T-14474-AB
12 * * Not Used N/A
13 * * Not Used N/A
14 VE350 (GY) 18 CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR METERING VALVE MINUS (RDMV-) 7S4T-14474-AB
15 * * Not Used N/A
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 * * Not Used N/A
20 CET22 (GY-BN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE OUTPUT PARK (TRO-P) 7S4T-14474-AB
21 VE351 (VT-OG) 18 CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR METERING VALVE PLUS (RDMV+) 7S4T-14474-AB
22 * * Not Used N/A
23 CE354 (BN-BU) 18 CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) PWR 7S4T-14474-AB
24 CET21 (GN-WH) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE OUTPUT NEUTRAL (TRO-N) 7S4T-14474-AB
25 * * Not Used N/A
26 * * Not Used N/A
27 * * Not Used N/A
28 VE747 (VT-OG) 20 SENSOR - DIESEL PARTICULATE FILTER TEMPERATURE INLET (#1) (DPFT1) + 7S4T-14474-AB
29 VE529 (GN-OG) 18 MONITOR - REDUCTANT PUMP 7S4T-14474-AB
30 VE722 (BN) 20 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT) 7S4T-14474-AB
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 * * Not Used N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 VE776 (BN-WH) 20 SENSOR - EXHAUST GAS TEMPERATURE 4 (EGT4) + 7S4T-14474-AB
38 VE838 (VT-GY) 18 SENSOR - REDUCTANT TANK TEMPERATURE (TRATS) + 7S4T-14474-AB
39 VE771 (BN-VT) 20 SENSOR - EXHAUST GAS TEMPERATURE 3 (EGT3) + 7S4T-14474-AB
40 * * Not Used N/A
41 * * Not Used N/A
42 RE406 (GY-VT) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) 7S4T-14474-AB
43 RE406 (GY-VT) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) 7S4T-14474-AB
44 * * Not Used N/A
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
