Connector End View (C1232B) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1232B POWERTRAIN CONTROL MODULE (PCM) 12A581 part# N/A Not Available

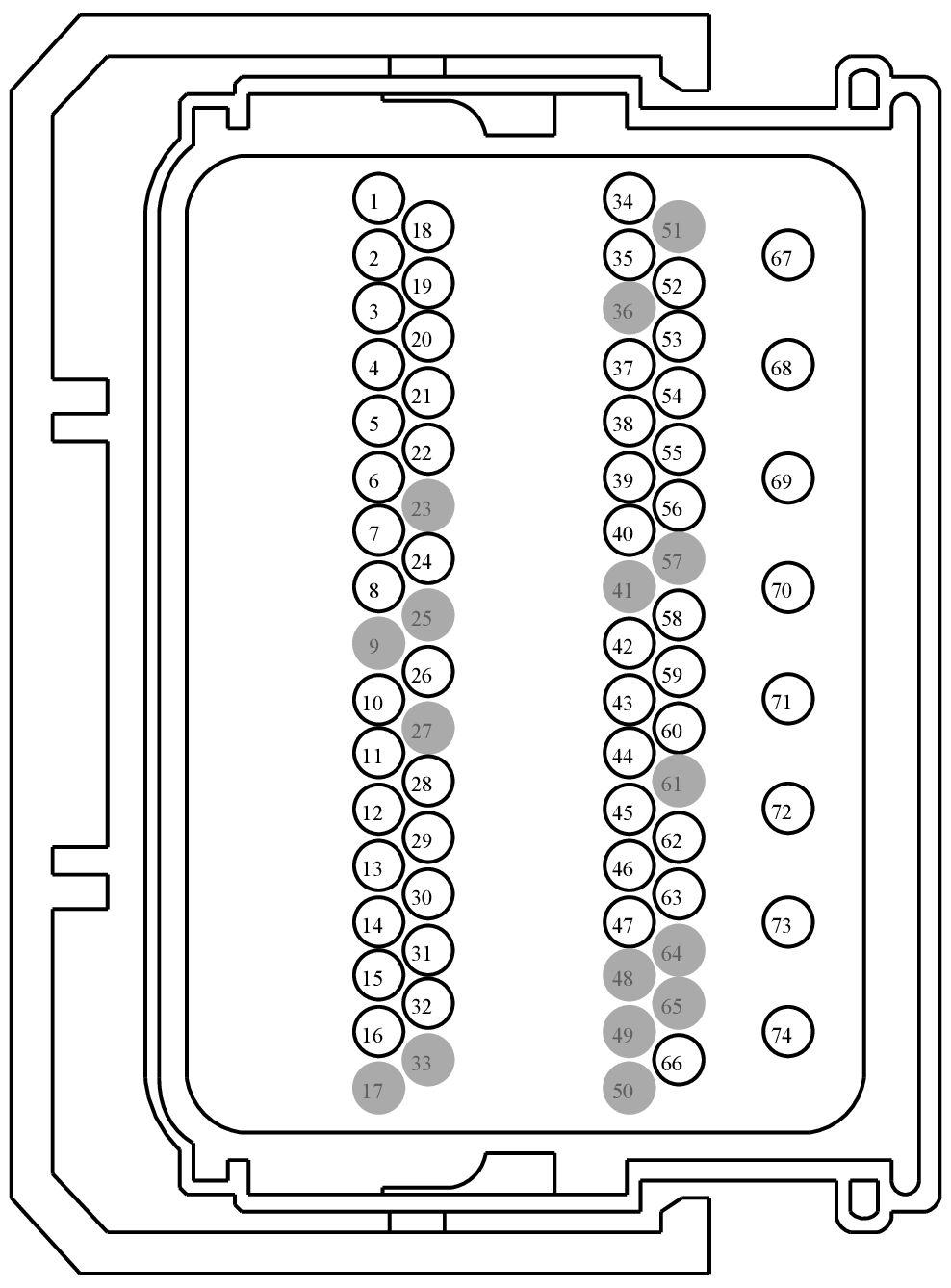

GFDWR56544Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
7S4T-14474-AB DU2Z-14474-BA 0.64
7S4T-14474-BB DU2Z-14474-BA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 LE111 (VT-GN) 22 CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) 7S4T-14474-BB
2 CH302 (WH-BN) 18 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) 7S4T-14474-AB
3 VE750 (GN-BU) 22 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) 7S4T-14474-BB
4 CE933 (BU-OG) 22 SWITCH - POWER TAKE OFF REQUEST 2 (PTORS2) 7S4T-14474-BB
5 VMC05 (VT-OG) 22 CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT) 7S4T-14474-BB
6 CE912 (YE-GN) 22 SWITCH - POWER TAKE OFF REQUEST 1 (PTO) (PTORS1) 7S4T-14474-BB
7 CDC12 (YE) 18 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) 7S4T-14474-AB
8 CE914 (GN) 22 SWITCH - POWER TAKE OFF IDLE CONTROL 2 (PTOIC) 7S4T-14474-BB
9 * * Not Used N/A
10 CE913 (BU) 22 SWITCH - POWER TAKE OFF IDLE CONTROL 1 (PTOIC) 7S4T-14474-BB
11 CE326 (BU-WH) 22 CTRL MOD. - POWERTRAIN # POWER TAKE OFF OK INDICATOR (PTO_OKAY) (PTO_IND) 7S4T-14474-BB
12 VEC10 (GY-YE) 22 SENSOR - FAN SPEED (FSS) 7S4T-14474-BB
13 CCB08 (VT-WH) 22 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN 7S4T-14474-BB
14 CDC15 (VT) 22 GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) 7S4T-14474-BB
15 CDC47 (WH) 18 GENERATOR (ALTERNATOR) # LOAD INPUT #2 (GENLI) 7S4T-14474-AB
16 CDC35 (BU-WH) 22 SWITCH - IGNITION # START 7S4T-14474-BB
17 * * Not Used N/A
18 CE226 (YE-VT) 18 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + 7S4T-14474-AB
19 VE225 (YE-OG) 18 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) 7S4T-14474-AB
20 CE140 (BN) 22 CTRL MOD. - POWERTRAIN # BATTERY CHARGE PROTECT INDICATOR (BCHPL) (BCPIL) 7S4T-14474-BB
21 CE926 (VT-BN) 22 SWITCH - BATTERY CHARGE PROTECT MODE (BCPSW) 7S4T-14474-BB
22 RE327 (GY-VT) 22 CTRL MOD. - POWERTRAIN # POWER TAKE OFF RETURN (PTO_GND) 7S4T-14474-BB
23 * * Not Used N/A
24 VE823 (BU-BN) 18 SENSOR - WATER IN FUEL + 7S4T-14474-AB
25 * * Not Used N/A
26 CCB12 (GN) 22 SWITCH - EXHAUST BRAKE 7S4T-14474-BB
27 * * Not Used N/A
28 VE701 (YE-OG) 18 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) 7S4T-14474-AB
29 VE702 (BU-WH) 18 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) 7S4T-14474-AB
30 CET40 (GN-OG) 18 SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN) 7S4T-14474-AB
31 VH433 (VT-OG) 22 TRANSDUCER - A/C PRESSURE (ACPT) + 7S4T-14474-BB
32 VE518 (BN-WH) 18 MONITOR - FUEL PUMP (FPM) 7S4T-14474-AB
33 * * Not Used N/A
34 VE203 (VT) 22 CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) 7S4T-14474-BB
35 CE436 (VT-OG) 22 CTRL MOD. -WAKE UP PCM 7S4T-14474-BB
36 * * Not Used N/A
37 CDC54 (WH-GN) 18 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) 7S4T-14474-AB
38 CE937 (VT-GY) 18 SWITCH - START/STOP DISABLE 7S4T-14474-AB
39 VE349 (BN-YE) 18 CTRL MOD. - POWERTRAIN # NOX CAN BUS #2 LOW 7S4T-14474-AB
40 VE807 (YE-VT) 22 SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) 7S4T-14474-BB
41 * * Not Used N/A
42 CBB33 (WH-BN) 22 FUSE - 33 OR CIRCUIT BREAKER 7S4T-14474-BB
43 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW 7S4T-14474-BB
44 RE407 (YE-VT) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) 7S4T-14474-AB
45 LE424 (YE-GN) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-REF) 7S4T-14474-AB
46 CES09 (VT-OG) 22 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + 7S4T-14474-BB
47 VE740 (VT-GY) 22 SENSOR - INTAKE AIR TEMPERATURE (IAT) 7S4T-14474-BB
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 * * Not Used N/A
52 LE136 (GN-OG) 18 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) 7S4T-14474-AB
53 CDC09 (YE) 22 CTRL MOD. - POWERTRAIN # GENERATOR INDICATOR-LINE CONTROL (ILC) 7S4T-14474-BB
54 CDC48 (YE-GN) 18 CTRL MOD. - POWERTRAIN # GENERATOR INDICATOR-LINE CONTROL #2 (ILC) 7S4T-14474-AB
55 LE434 (WH-BN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE POWER TAKE OFF (PTO_VREF) 7S4T-14474-BB
56 VE348 (GN-OG) 18 CTRL MOD. - POWERTRAIN # NOX CAN BUS #2 HIGH 7S4T-14474-AB
57 * * Not Used N/A
58 RE136 (VT-GN) 18 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) 7S4T-14474-AB
59 VDB04 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH 7S4T-14474-BB
60 RE320 (BU) 22 CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN) 7S4T-14474-BB
61 * * Not Used N/A
62 SBB95 (WH-RD) 18 FUSE - 95 OR CIRCUIT BREAKER 7S4T-14474-AB
63 RE137 (YE-GN) 18 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) 7S4T-14474-AB
64 * * Not Used N/A
65 * * Not Used N/A
66 LE137 (BU-GY) 18 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) 7S4T-14474-AB
67 CBK01 (BU) 20 FUSE - 1 OR CIRCUIT BREAKER (VPWR F) 7C3T-14474-DA
68 CBK01 (BU) 20 FUSE - 1 OR CIRCUIT BREAKER (VPWR F) 7C3T-14474-DA
69 CBK01 (BU) 20 FUSE - 1 OR CIRCUIT BREAKER (VPWR F) 7C3T-14474-DA
70 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT 7C3T-14474-DA
71 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT 7C3T-14474-DA
72 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT 7C3T-14474-DA
73 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT 7C3T-14474-DA
74 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT 7C3T-14474-DA
