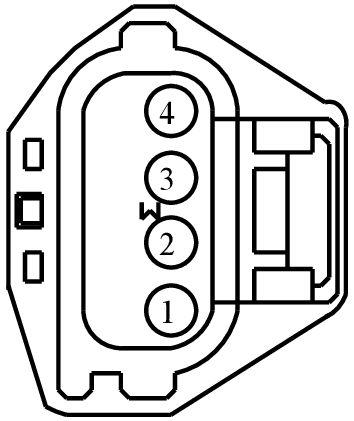

Connector End View (C1189) - ELECTRONIC THROTTLE CONTROL (ETC) THROTTLE POSITION SENSOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1189 | ELECTRONIC THROTTLE CONTROL (ETC) THROTTLE POSITION SENSOR | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AHA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE819 (GN-VT) | 18 | SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) | 97BG-14474-AHA | ||||
| 2 | LE134 (YE) | 18 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | 97BG-14474-AHA | ||||
| 3 | RE134 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | 97BG-14474-AHA | ||||
| 4 | VE818 (BN) | 18 | SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) | 97BG-14474-AHA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1293
Service Part Number:
3U2Z-14S411-UC
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Control - Electronic Throttle
- Sensor - Fuel Rail Temperature
- Sensor - Fuel Tank Pressure Transducer
- Sensor - Manifold Absolute Pressure (MAP)
- Sensor - Manifold Pressure/Intake Temperature
- Sensor - Throttle Position
